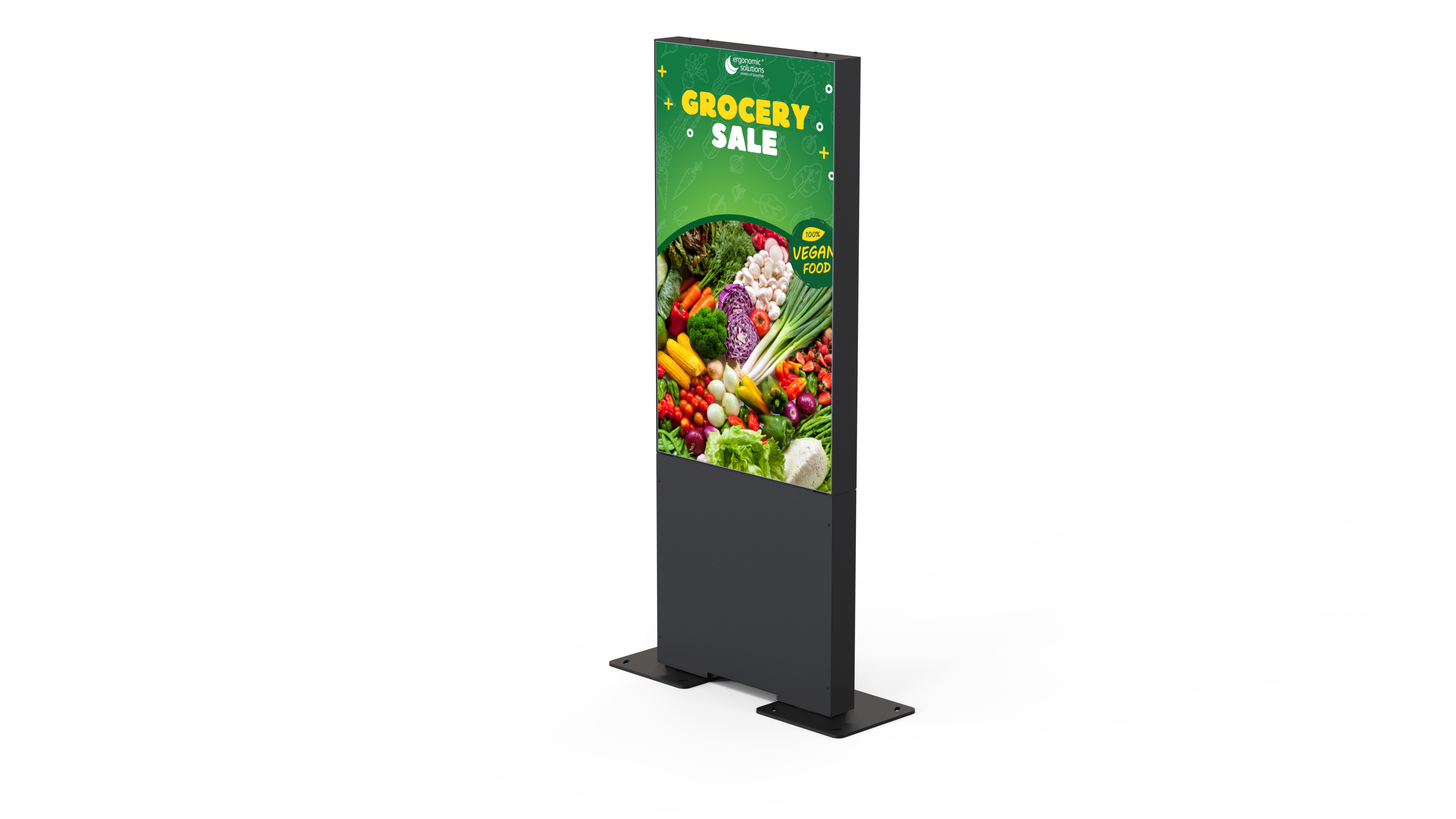

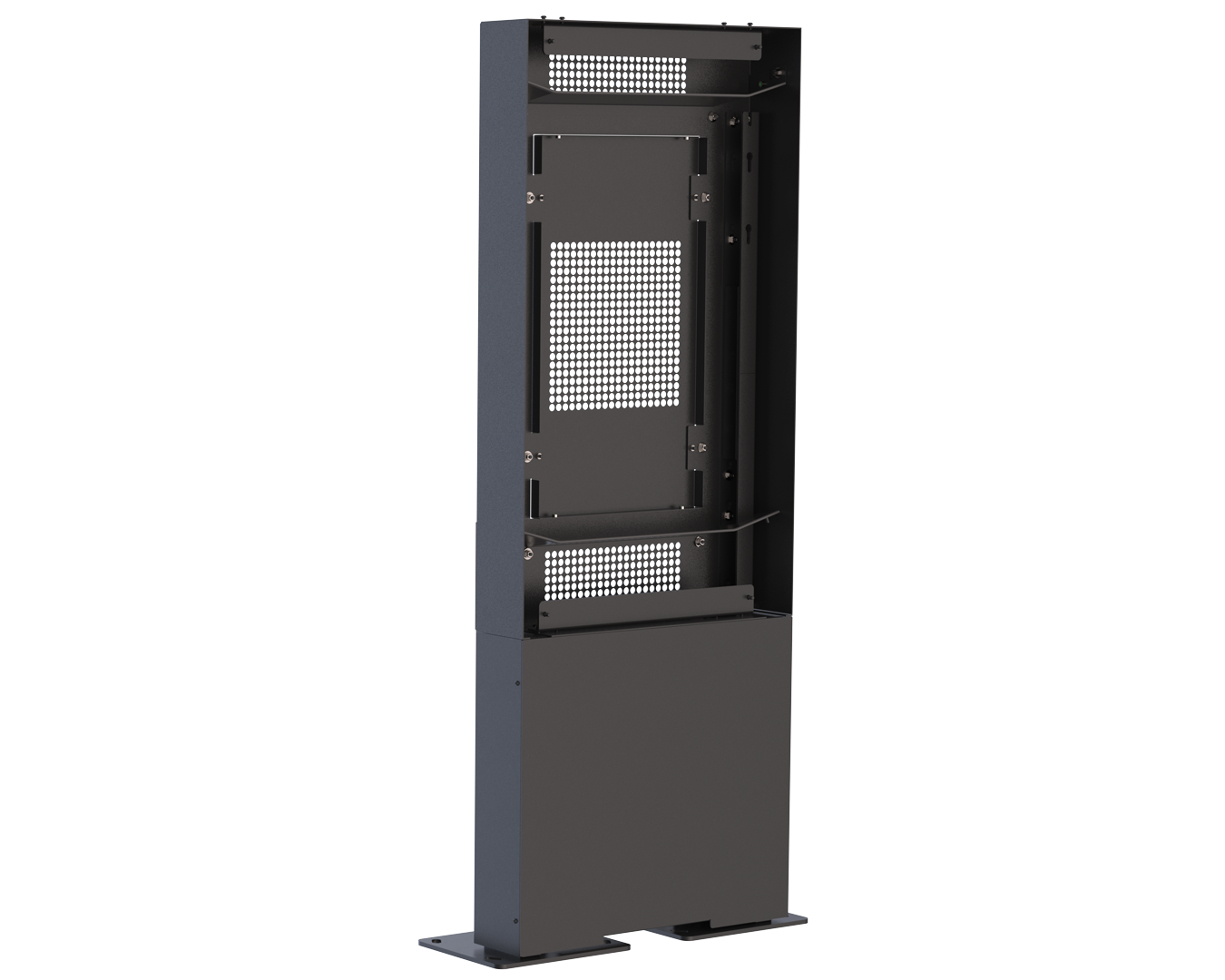

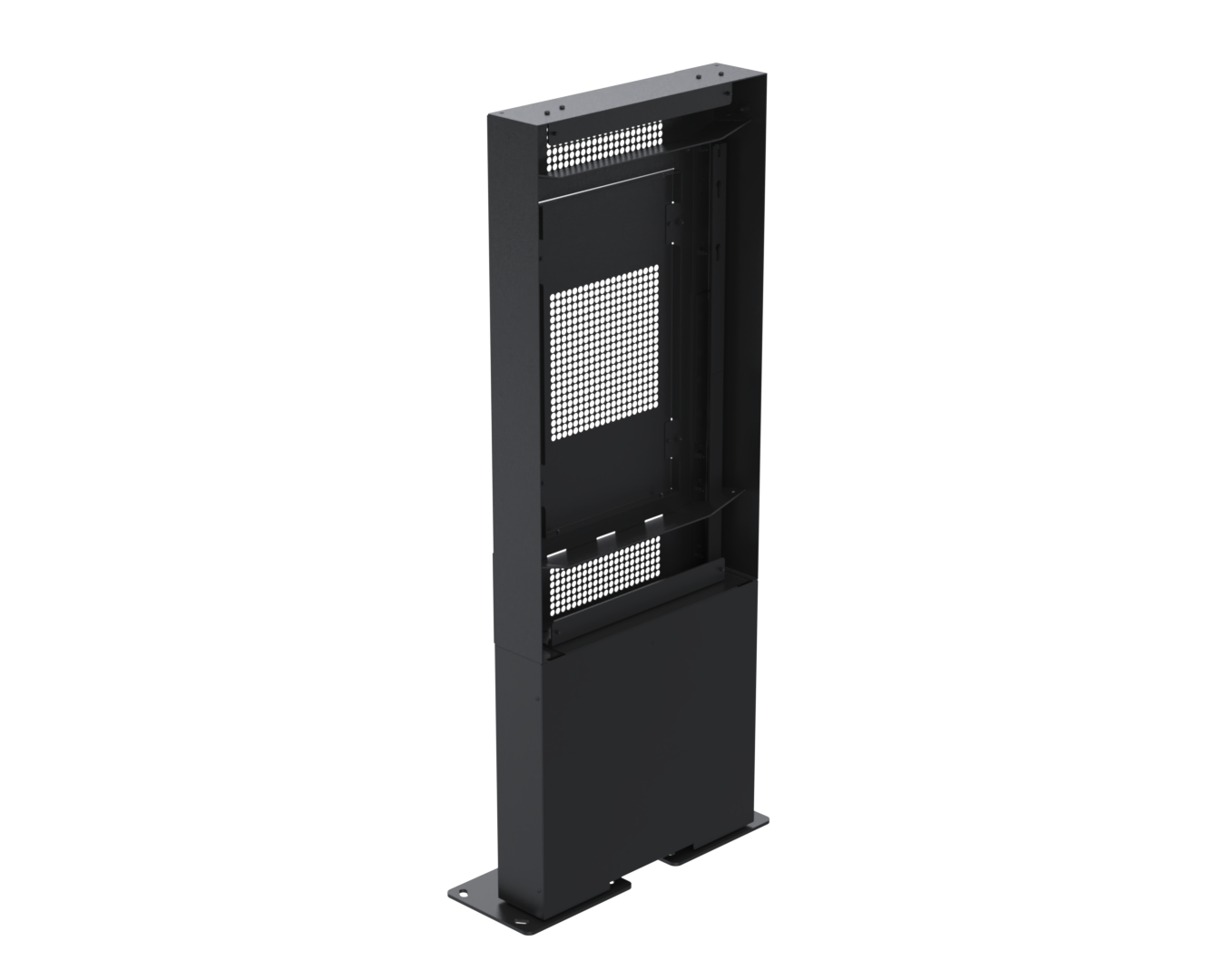

Outdoor Enclosure - Single
SPDS3001-W05
Engage with your customers and increase your revenue, with the SPDS3000 Series mounting solution for outdoor digital signage applications. This is a Samsung design approved solution for digital signage displays. Digital Signage provides a communication platform for customers, enabling a seamless experience from drive-through to indoor ordering. The SPDS3xxx provides a simple solution for QSR, Hospitality and Retail.
-
- A single Samsung display OH55F/OH55A/OH55A-S
- Modular build for easy two-man installation
- Slim bezel design
- Easy access for screen maintenance
- Security fixings for secure hardware installation
- Outdoor certified
- Anti-graffiti coating as standard
- Upgradeable as base modules for SPDS3001 and SPDS3002 are identical
- 5-year warranty
Available colour(s)
Product Enquiry
If you have any queries about the product, pricing, or purchasing options, please click the button below.
Product Specifications
| Colour Name | Grey |
|---|---|
| Colour Type | Outdoor |
| Device Brand | Samsung |
| Compatible device name | OH55A , OH55A-S , OH55F |
| Main material | Metal |
| Product Version | 1.1 |
| Recycled content of packaging [%] | 86 |
| Recycled content of product [%] | 17.723 |
| Screen size supported | 55" |
| Mounting | Hardware Specific Mounting Pattern |
| Mounting Type | Floor |
| Unit Weight | 114.27 kg |
| Unit Depth | 300 mm |
| Unit Height | 1961.6 mm |
| Unit Width | 863.2 mm |
| Units per Box | 1 |
| Box Weight | 121.35 kg |
| Box Depth | 0 mm |
| Box Height | 0 mm |
| Box Width | 0 mm |
| Warranty | 5 Years |
| Recycled Content Disclaimer | The Recycled Content (RC) percentage shown is an average, calculated using a mass balance methodology across our production. This figure is subject to supply chain variability and is provided strictly for informational purposes, carrying no guarantee for individual products. |
Installation Guide
| Name | Download | File type | |
|---|---|---|---|
|
|
MK15-0372 (Outdoor enclosure - Single_Screen)-v1.0.pdf | 7379 KB |
