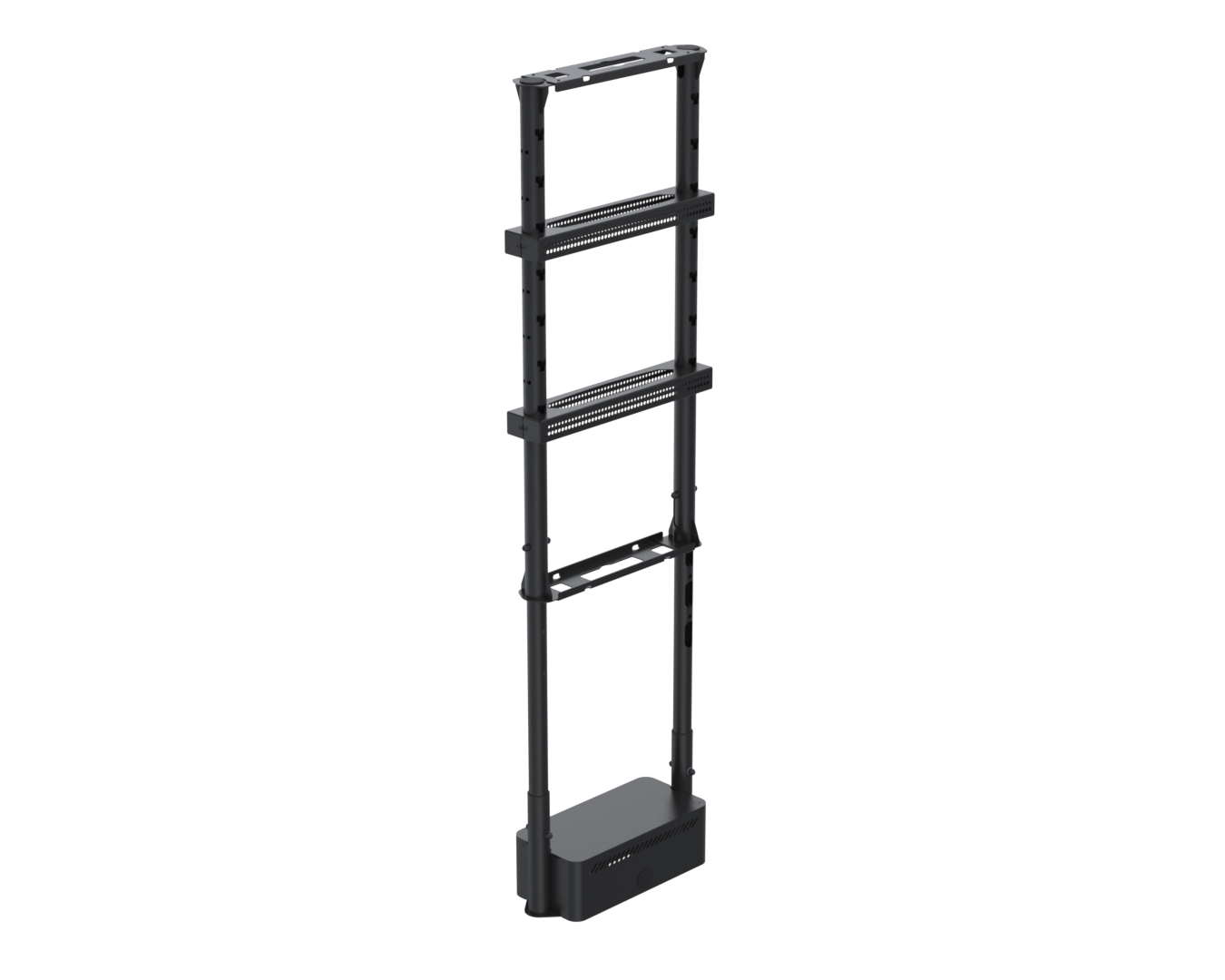

Dual-sided, height adjustable window mount for portrait screens up to 75" (up to VESA 400x600)
SPDS41011-02
Dual-sided display solution for 42"–75" screens, floor-mounted and supporting both portrait and landscape modes. Height adjustable and featuring internal cable management, a sturdy metal frame with a storage base, and secure magnetic lid.
• Dual-sided display solution ideal for mounting in a window, floor mounted
• Height adjustment: 1515 mm to 1915 mm (4 fixed positions)
• Mounting height options (VESA Centre):
- VESA 200x200: 877mm to 1677 mm
- VESA 300x300: 928 mm to 1627 mm
- VESA 400x400: 977mm to 1577 mm
- VESA 400x600: 1077mm to 1477mm
• Hook-on feature for easy display installation and maintenance
• Storage space in the base for external media player, power socket with easy access through magnet mounted lid
Product Specifications
| Main material | Metal |
|---|---|
| Distance to the wall | 0 mm |
| Cable Management | External cable management clip |
| Colour Name | Black |
| Colour Type | Structured , Anti-microbial |
| Enclosure Format | Back-To-Back |
| Enclosure type | Indoor |
| Max weight capacity (kg) | 100 |
| Mounting | VESA |
| Mounting Type | Floor |
| Screen size supported | 42" , 43" , 48" , 50" , 55" , 60" , 65" , 75" |
| VESA mounting standard | 200 x 200 , 200 x 300 , 200 x 400 , 300 x 200 , 300 x 300 , 300 x 400 , 400 x 200 , 400 x 300 , 400 x 400 , 600 x 300 , 600 x 400 |
| Unit Depth | 214 mm |
| Unit Height | 1915 mm |
| Unit Width | 546 mm |
| Unit Weight | 23.24 kg |
| Height adjustable? | Yes |
| Units per Box | 1 |
| Box Depth | 250 mm |
| Box Height | 350 mm |
| Box Width | 1200 mm |
| Box Weight | 24.4 kg |
| Warranty | 5 Years |
Product Sheet
| Name | Download | File type | |
|---|---|---|---|
|
|
es-SpacePole-In-Window-Floor-Mount-product-sheet-en-r3.pdf | 768 KB |
Installation Guide
| Name | Download | File type | |
|---|---|---|---|
| MK15-0490_V1.0.PDF | 2083 KB |
