Wall mount for Samsung SH37F Screen
SPDS4001-02

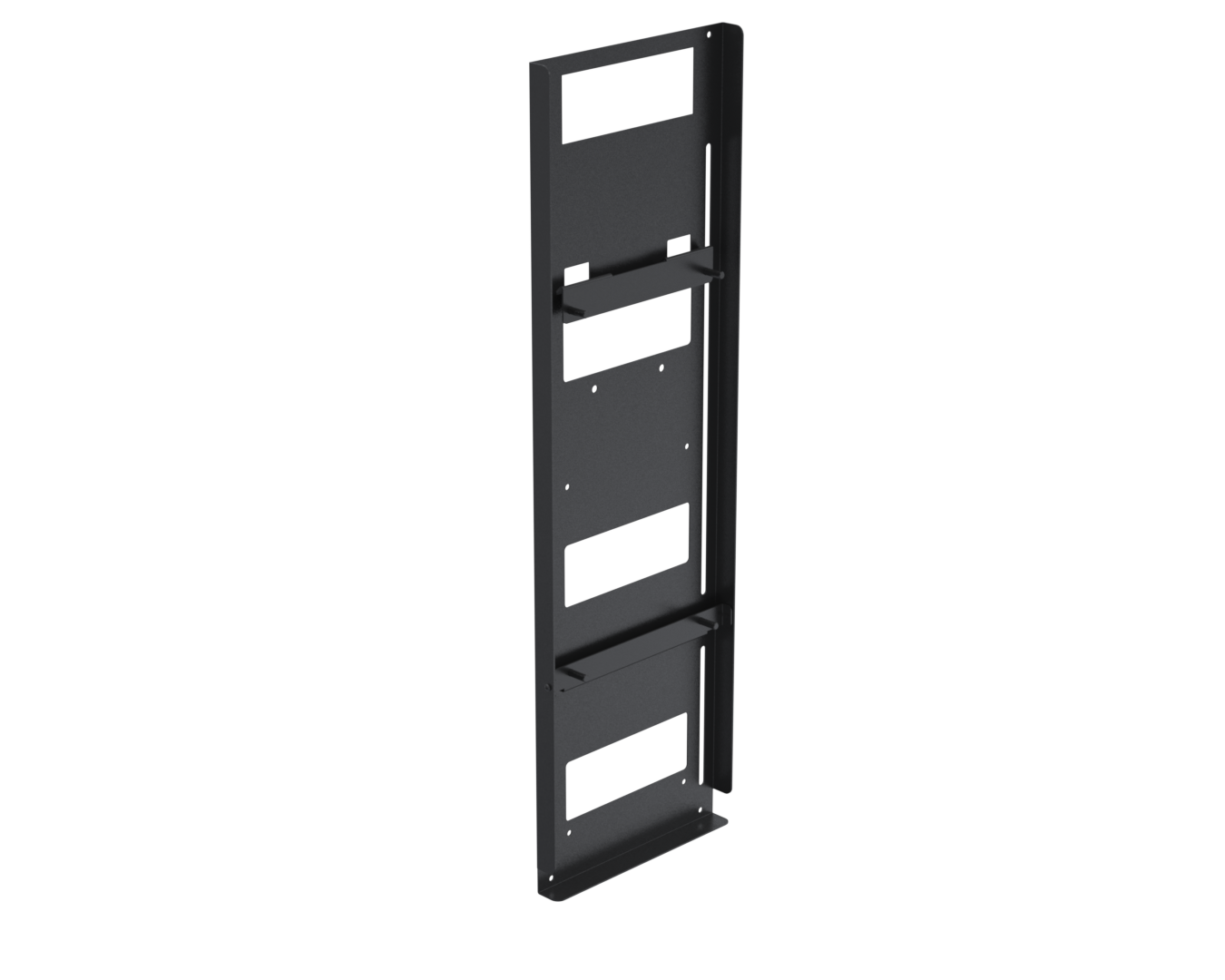

The SPDS4001 Wall Mount is specifically designed for Samsung's SH37F stretch screen. With a sleek, space-saving design, it also offers the option to add up to four shelves, making it ideal for RFID-based applications.
-
- Single screen fixed Wall Mount for Samsung SH37F stretch screen
- Portrait orientation
- Shelves can be fitted to both sides of the screen
- Can be used as a part of a Lift and Learn solution
- 5-year warranty
Available colour(s)
Product Enquiry
If you have any queries about the product, pricing, or purchasing options, please click the button below.
Product Specifications
| Colour Name | Black |
|---|---|
| Colour Type | Structured |
| Device Brand | Samsung |
| Compatible device name | SH37F |
| Height adjustable? | No |
| Main material | Metal |
| Product Version | 1.2 |
| Distance to the wall | 30 mm |
| Enclosure Format | Single Sided |
| Max weight capacity (kg) | 10 |
| Mounting | Hardware Specific Mounting Pattern |
| Mounting Type | Wall |
| Screen size supported | 37" |
| Unit Weight | 4.23 kg |
| Unit Depth | 32 mm |
| Unit Height | 911.5 mm |
| Unit Width | 285.2 mm |
| Units per Box | 1 |
| Box Weight | 4.44 kg |
| Box Depth | 1210 mm |
| Box Height | 325 mm |
| Box Width | 310 mm |
| Warranty | 5 Years |
Installation Guide
| Name | Download | File type | |
|---|---|---|---|
|
|
MK15-0493_V1.0(Wall mount for Samsung SH37F Screen).pdf | 480 KB |
