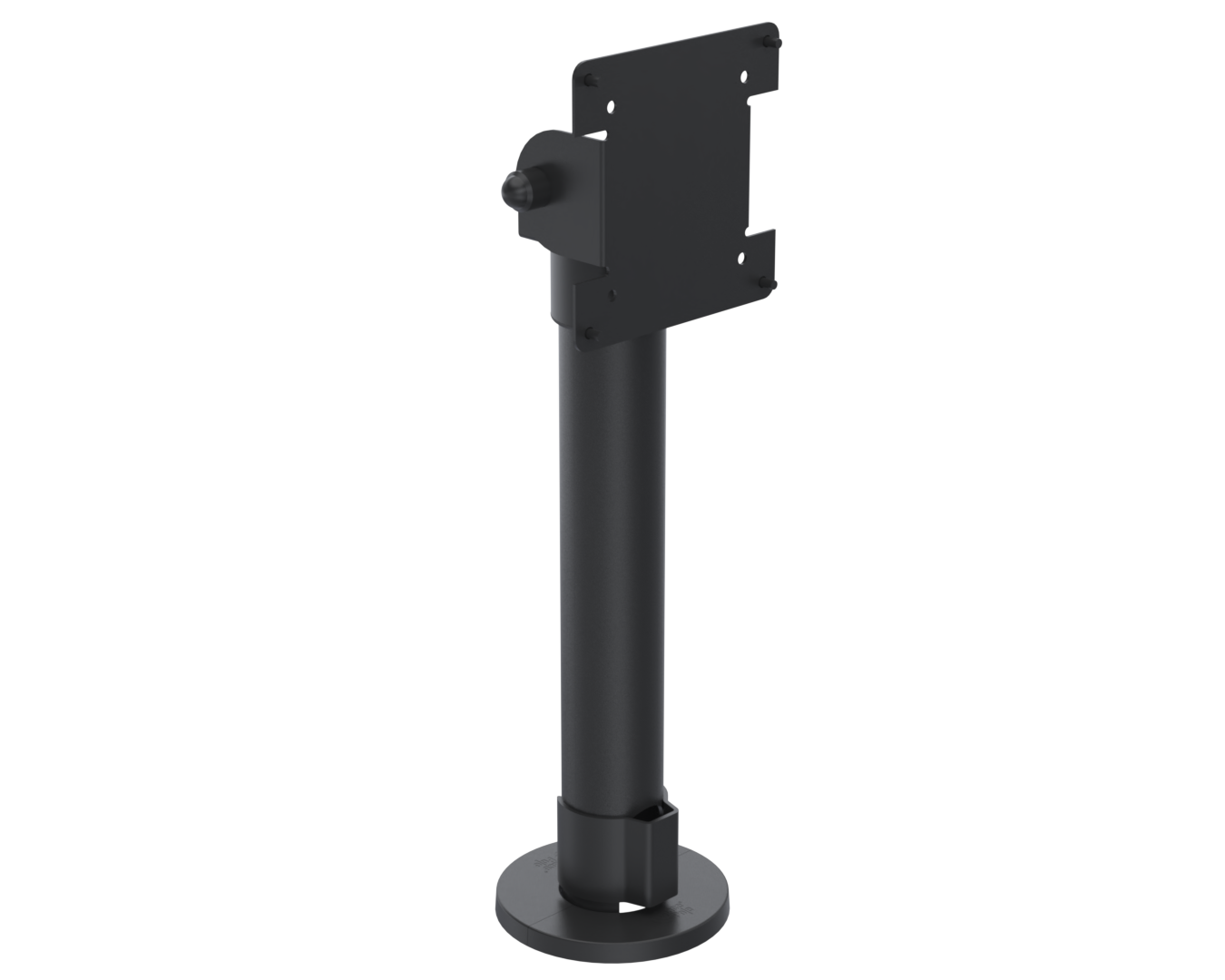

VESA 75/100 Pole Mount, Top Screen Mount - High tension
Stylishly mount your touch POS display screens
The top mount is used when the solution requires space for the attachment of other peripherals such as a swing arm for a printer or payment terminal to the SpacePole – in addition to the screen. This type of mounting solution is particularly useful where the actual space on the counter itself is limited. Raising the technology above the counter frees up any space that is available.
Product Specifications
| Main material | Metal |
|---|---|
| Product Version | 1.0 |
| Angle of rotation | 310 |
| Base Type | Standard flange Footprint Ø97mm |
| Colour Name | Black |
| Height adjustable? | No |
| Screen size supported | 11" , 12" , 13" , 15" , 17" , 19" , 21" , 22" , 24" , 27" |
| Max weight capacity (kg) | 12 |
| Mounting | VESA |
| Mounting Type | Counter |
| Screws included | Yes |
| Colour Type | Structured , Anti-microbial |
| Tilt angle range | +10 to -70° |
| Unit Depth | 89.3 mm |
| Unit Height | 386.3 mm |
| Unit Width | 115 mm |
| Unit Weight | 1.19 kg |
| Units per Box | 1 |
| Pole diameter type | SP2 inner = 44.5mm |
| Box Depth | 600 mm |
| Box Height | 130 mm |
| Box Width | 130 mm |
| Box Weight | 1.25 kg |
| Warranty | 5 Years |
Installation Guide
| Name | Download | File type | |
|---|---|---|---|
|
|
MK15-0166-A4-2Sides vers.1.4 (Essentials Top Screen Mount Installation Guide).pdf | 884 KB |
Features
-
Over the last 25 years, we have shipped over 12.5 million SpacePole point of sale installations, making us the preferred choice for over 60% of the world’s top 50 retailers
Benefits
-
The SpacePole Essentials concept is very straightforward. It requires the selection of an appropriate VESA mounting solution and required functionality, pick the cable managed peripheral swingarm and finally match your peripheral hardware to configure your ideal solution.
-
Includes a wide range of interchangeable accessories to support different hardware options including payment devices, receipt printers, scanners and customer displays - Compatibility with solutions VESA 75/100
-
Configure your SpacePole POS solutions
-
Selection of counter & floor mounts
-
allows for easy integration with peripherals such as payment terminals, scanners and printers.
