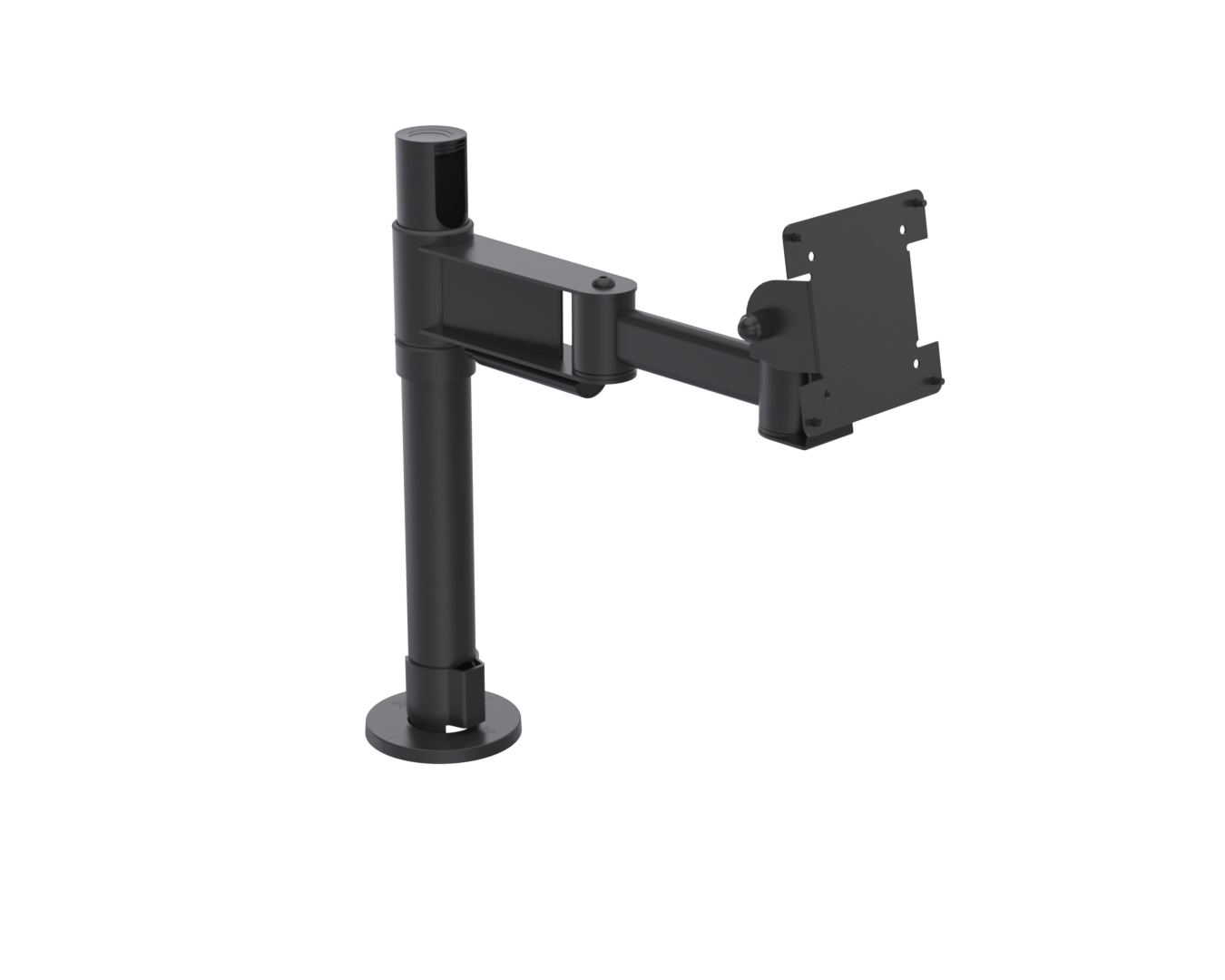

Screen Mount with 300mm Elbow Arm - High tension
SPV1106-H-FX-02
Stylishly mount your touch POS display screens
When extra reach is required, the elbow arm allows even greater accessibility for the customer or second operator. This allows the customer to view the screen for order confirmation and provides convenient screen positioning for shared use.
-
- Compatible with VESA 75 and VESA 100 mounting hole patterns
- Provides strong resistance, with a tension range of 7.5 to 10 kg, suitable for high-intensity applications or advanced strength training
- Enhances workstation productivity by enabling optimal screen placement within the operator's eyeline
- Features a 300mm elbow arm for extended reach, providing easier screen visibility for the customer
- 5-year warranty
Available colour(s)
Product Enquiry
If you have any queries about the product, pricing, or purchasing options, please click the button below.
Product Specifications
| Colour Name | Black |
|---|---|
| Colour Type | Structured |
| Main material | Metal |
| Screen setup | Single-sided |
| Product Version | 1.1 |
| Angle of rotation | 310 |
| Height adjustable? | No |
| Screen size supported | 11" , 12" , 13" , 15" , 17" , 19" , 21" , 22" , 24" , 27" |
| Max weight capacity (kg) | 12 |
| Screws included | Yes |
| Tilt angle range | +10 to -70° |
| Pole diameter type | SP2 inner = 44.5mm |
| Unit Weight | 2.24 kg |
| Unit Depth | 412.8 mm |
| Unit Height | 420.3 mm |
| Unit Width | 115 mm |
| Units per Box | 1 |
| Box Weight | 2.66 kg |
| Box Depth | 399 mm |
| Box Height | 134 mm |
| Box Width | 299 mm |
| Warranty | 5 Years |
Installation Guide
| Name | Download | File type | |
|---|---|---|---|
|
|
MK15-0170-A4-2Sides vers.1.3 (Essentials Elbow Arm Screen Mount Installation Guide).pdf | 1154 KB |
-
Selection of counter & floor mounts
-
allows for easy integration with peripherals such as payment terminals, scanners and printers.
