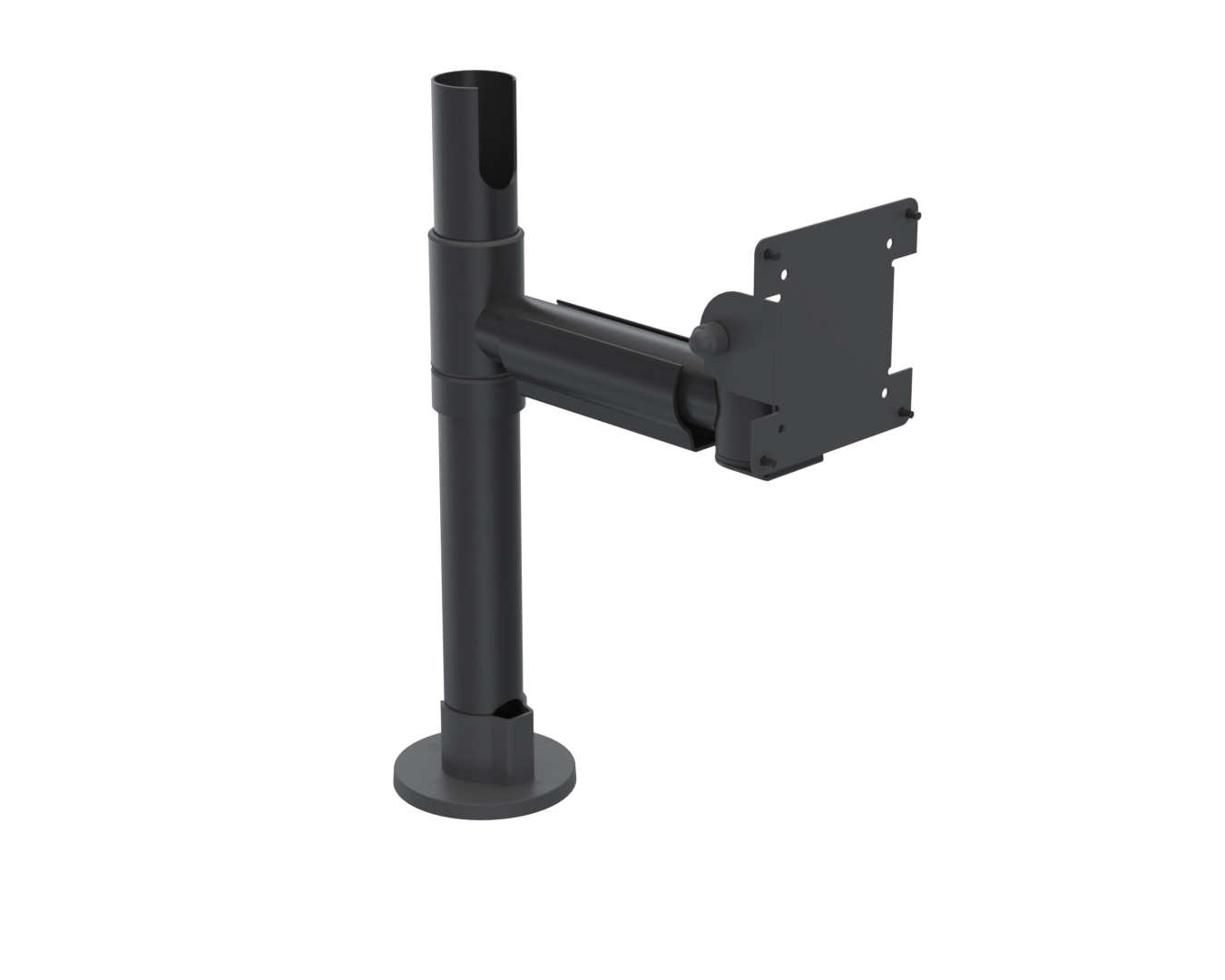

Screen Mount with 200mm Swingarm, VESA - High tension
SPV1104-H-FX-02
Stylishly mount your touch POS display screens
Our popular Swing Arm provides an ergonomic solution where peripherals or the screen itself is needed to swing between the operator and customer. This allows the customer to view the screen for confirmation of an order, or to rotate the payment terminal from the operator to the customer or vice-versa.
-
- Compatible with VESA 75 and VESA 100 mounting hole patterns
- Provides strong resistance, with a tension range of 7.5 to 10 kg, suitable for high-intensity applications or advanced strength training
- Enhances workstation productivity by enabling optimal screen placement within the operator's eyeline
- Features a 200mm swingarm for easy screen and peripheral movement, ideal for dynamic interactions between operator and customer
- 5-year warranty
Available colour(s)
Product Enquiry
If you have any queries about the product, pricing, or purchasing options, please click the button below.
Product Specifications
| Colour Name | Black |
|---|---|
| Colour Type | Structured |
| Main material | Metal |
| Screen setup | Single-sided |
| Product Version | 1.0 |
| Angle of rotation | 310 |
| Height adjustable? | No |
| Screen size supported | 11" , 12" , 13" , 15" , 17" , 19" , 21" , 22" , 24" , 27" |
| Max weight capacity (kg) | 12 |
| Screws included | Yes |
| Tilt angle range | +10 to -70° |
| Pole diameter type | SP2 inner = 44.5mm |
| Unit Weight | 1.85 kg |
| Unit Depth | 313.2 mm |
| Unit Height | 402.9 mm |
| Unit Width | 115 mm |
| Units per Box | 1 |
| Box Weight | 2.12 kg |
| Box Depth | 600 mm |
| Box Height | 130 mm |
| Box Width | 130 mm |
| Warranty | 5 Years |
Installation Guide
| Name | Download | File type | |
|---|---|---|---|
|
|
MK15-0168-A4-2Sides vers.1.4 (Essentials Arm Screen Mount Installation Guide).pdf | 917 KB |
-
Selection of counter & floor mounts
-
allows for easy integration with peripherals such as payment terminals, scanners and printers.
