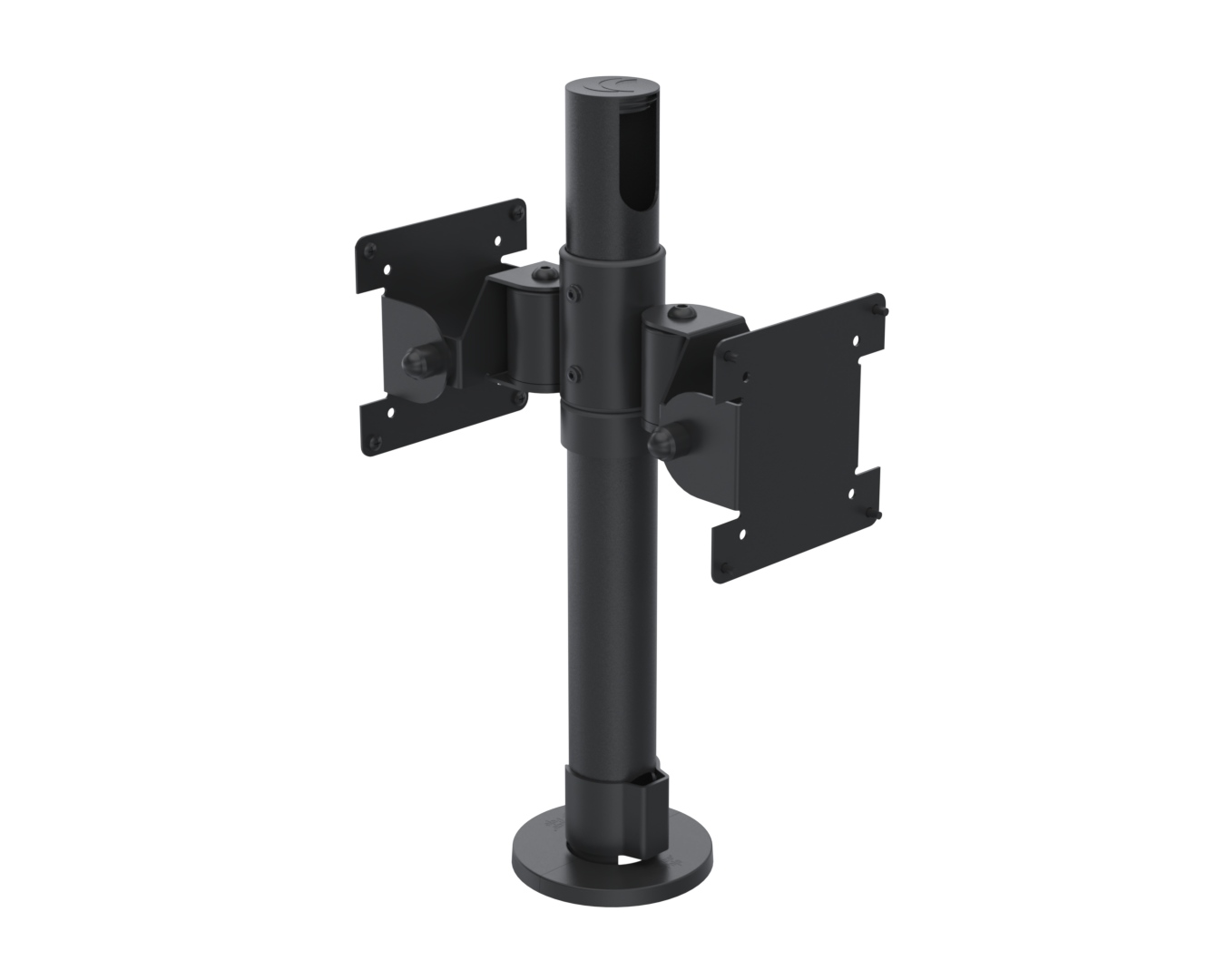

Back-to-back Screen Mount, VESA 75/100 - High tension
SPV1103-H-FX-02
Stylishly mount your touch POS display screens
This back-to-back mount is used when the solution requires dual screens, maximizing display space without compromising counter space. This type of mounting solution is particularly useful in POS environments where efficient use of space is critical. By mounting two screens back-to-back, it optimizes viewing angles for both the operator and the customer, enhancing the user experience and potentially freeing up valuable counter space.
-
- Enables dual-screen mounting with VESA 75 and VESA 100 compatibility
- Provides strong resistance, with a tension range of 7.5 to 10 kg, suitable for high-intensity applications or advanced strength training
- Enhances workstation productivity by enabling optimal screen placement within the operator's eyeline
- 5-year warranty
Available colour(s)
Product Enquiry
If you have any queries about the product, pricing, or purchasing options, please click the button below.
Product Specifications
| Colour Name | Black |
|---|---|
| Colour Type | Structured |
| Main material | Metal |
| Screen setup | Back-to-back |
| Product Version | 1.0 |
| Angle of rotation | 310 |
| Height adjustable? | No |
| Screen size supported | 11" , 12" , 13" , 15" , 17" , 19" , 21" , 22" , 24" , 27" |
| Max weight capacity (kg) | 12 |
| Screws included | Yes |
| Tilt angle range | +10 to -70° |
| Pole diameter type | SP2 inner = 44.5mm |
| Unit Weight | 2.11 kg |
| Unit Depth | 242.8 mm |
| Unit Height | 402.8 mm |
| Unit Width | 115 mm |
| Units per Box | 1 |
| Box Weight | 2.53 kg |
| Box Depth | 399 mm |
| Box Height | 134 mm |
| Box Width | 299 mm |
| Warranty | 5 Years |
Installation Guide
| Name | Download | File type | |
|---|---|---|---|
|
|
MK15-0167-A4-2Sides vers.1.4 (Essentials Back-to-Back Screen Mount Installation Guide).pdf | 1104 KB |
-
