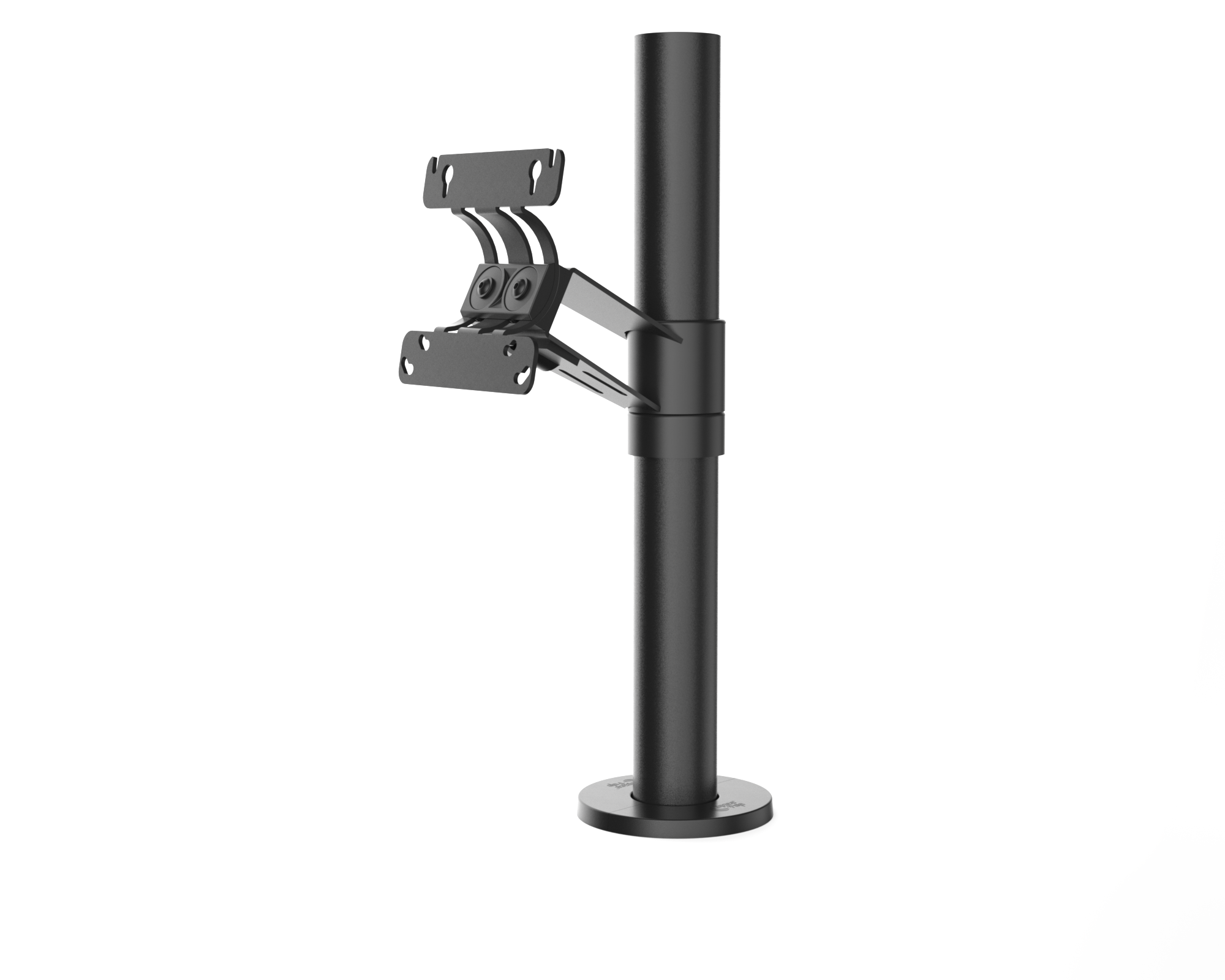

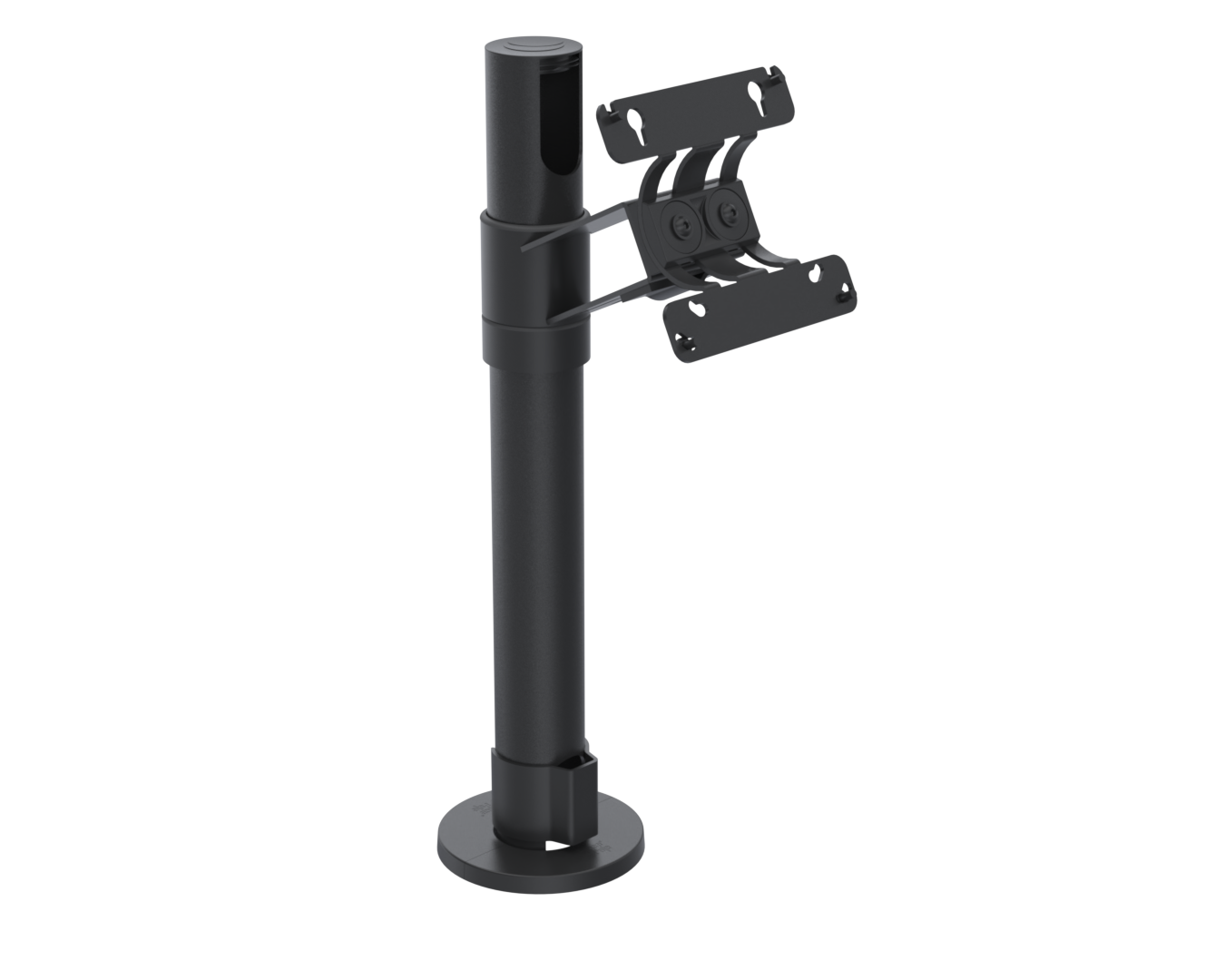

SpacePole Arc VESA 75/100 Pole Mount
Stylishly mount your touch POS display screens
The SpacePole Arc Pole Mount is probably the most used foundation in mounting POS systems.
It provides a mount for the screen and a customer display (with optional adapter). Optimum screen height can be set on installation and the Screen Mount provides all the screen rotation and tilt necessary in terms of providing an ergonomic workstation that aids operator productivity.
Suitable for screens ranging from 1 - 12kg
Product Specifications
| Main material | Metal |
|---|---|
| Angle of rotation | 310 |
| Base Type | Standard flange Footprint Ø97mm |
| Colour Name | Black |
| Height adjustable? | No |
| Max weight capacity (kg) | 12 |
| Mounting | VESA |
| Mounting Type | Counter |
| Pole diameter type | SP2 inner = 44.5mm |
| Screws included | Yes |
| VESA mounting standard | 75 x 75 , 100 x 100 |
| Colour Type | Structured , Anti-microbial |
| Tilt angle range | +10 to -70° |
| Unit Depth | 180.9 mm |
| Unit Height | 400 mm |
| Unit Width | 115 mm |
| Unit Weight | 1.42 kg |
| Units per Box | 1 |
| Box Depth | 600 mm |
| Box Height | 130 mm |
| Box Width | 130 mm |
| Box Weight | 1.49 kg |
| Warranty | 5 Years |
Product Sheet
| Name | Download | File type | |
|---|---|---|---|
|
|
es-SpacePole-Arc-product-sheet-en-r2.pdf | 634 KB |
Installation Guide
| Name | Download | File type | |
|---|---|---|---|
|
|
MK15-0330-A4-2Sides vers.1.0 (SpacePole Arc Screen Mount).pdf | 690 KB |
Features
-
Over the last 25 years, we have shipped over 12.5 million SpacePole point of sale installations, making us the preferred choice for over 60% of the world’s top 50 retailers
Benefits
-
The SpacePole Essentials concept is very straightforward. It requires the selection of an appropriate VESA mounting solution and required functionality, pick the cable managed peripheral swingarm and finally match your peripheral hardware to configure your ideal solution.
-
SpacePole Arc follows the design trend and helps enhance the minimalistic appearance of the new screens at the POS
-
Compliments the minimalistic look and feel of modern slim POS screens.
-
Selection of counter & floor mounts
-
Allows for easy integration with peripherals such as payment terminals, scanners and printers.
