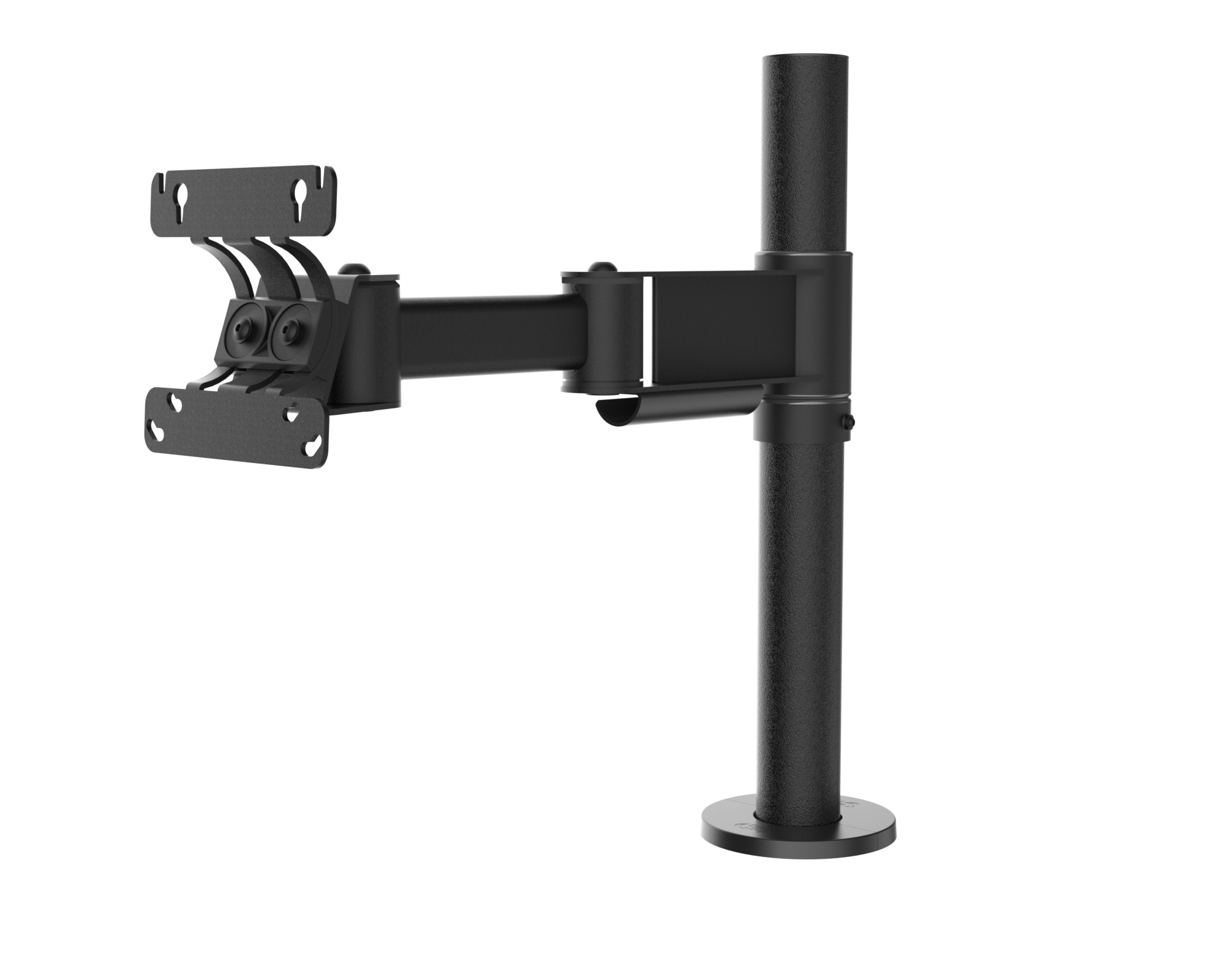

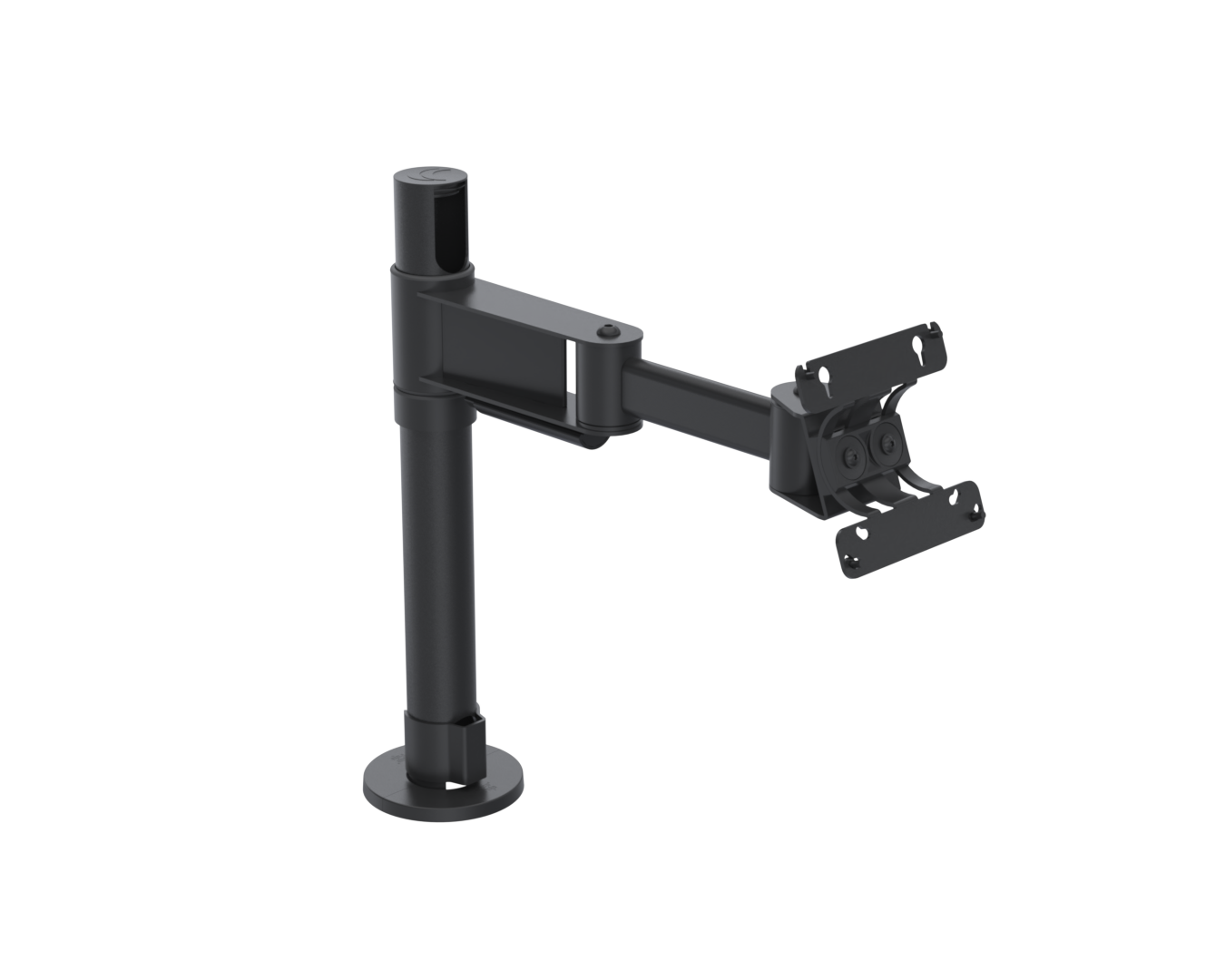

SpacePole Arc VESA 75/100 Mount with 300mm Elbow Arm
Stylishly mount your touch POS display screens
When extra reach is required, the elbow arm allows even greater accessibility for the customer or second operator. This allows the customer to view the screen for order confirmation and provides convenient screen positioning for shared use.
The SpacePole Arc can be mounted onto any existing SpacePole Essentials solution.
Suitable for screens ranging from 1 - 12kg
-
- Compatible with VESA 75 and VESA 100 mounting hole patterns
- Suitable for common POS screens
- Enhances workstation productivity by enabling optimal screen placement within the operator's eyeline
- Features a 300mm elbow arm for extended reach, providing easier screen visibility for the customer
- 5-year warranty
Available colour(s)
Product Enquiry
If you have any queries about the product, pricing, or purchasing options, please click the button below.
Product Specifications
| Colour Name | Black |
|---|---|
| Colour Type | Structured |
| Main material | Metal |
| Screen setup | Single-sided |
| Product Version | 1.0 |
| Angle of rotation | 310 |
| Base Type | Standard flange Footprint Ø97mm |
| Height adjustable? | No |
| Screen size supported | 11" , 12" , 13" , 15" , 17" , 19" , 21" , 22" , 24" , 27" |
| Max weight capacity (kg) | 12 |
| Mounting | VESA |
| Mounting Type | Counter |
| Screws included | Yes |
| Tilt angle range | +10 to -70° |
| Pole diameter type | SP2 inner = 44.5mm |
| Unit Weight | 2.17 kg |
| Unit Depth | 433.8 mm |
| Unit Height | 402.8 mm |
| Unit Width | 115 mm |
| Units per Box | 1 |
| Box Weight | 2.28 kg |
| Box Depth | 600 mm |
| Box Height | 130 mm |
| Box Width | 130 mm |
| Warranty | 5 Years |
Installation Guide
| Name | Download | File type | |
|---|---|---|---|
|
|
MK15-0335-A4-2Sides vers.1.0 (SpacePole Arc Elbow Arm Screen Mount).pdf | 934 KB |
Features
-
Over the last 25 years, we have shipped over 12.5 million SpacePole point of sale installations, making us the preferred choice for over 60% of the world’s top 50 retailers
Benefits
-
The SpacePole Essentials concept is very straightforward. It requires the selection of an appropriate VESA mounting solution and required functionality, pick the cable managed peripheral swingarm and finally match your peripheral hardware to configure your ideal solution.
-
SpacePole Arc follows the design trend and helps enhance the minimalistic appearance of the new screens at the POS
-
Compliments the minimalistic look and feel of modern slim POS screens.
-
Selection of counter & floor mounts
-
Allows for easy integration with peripherals such as payment terminals, scanners and printers.
