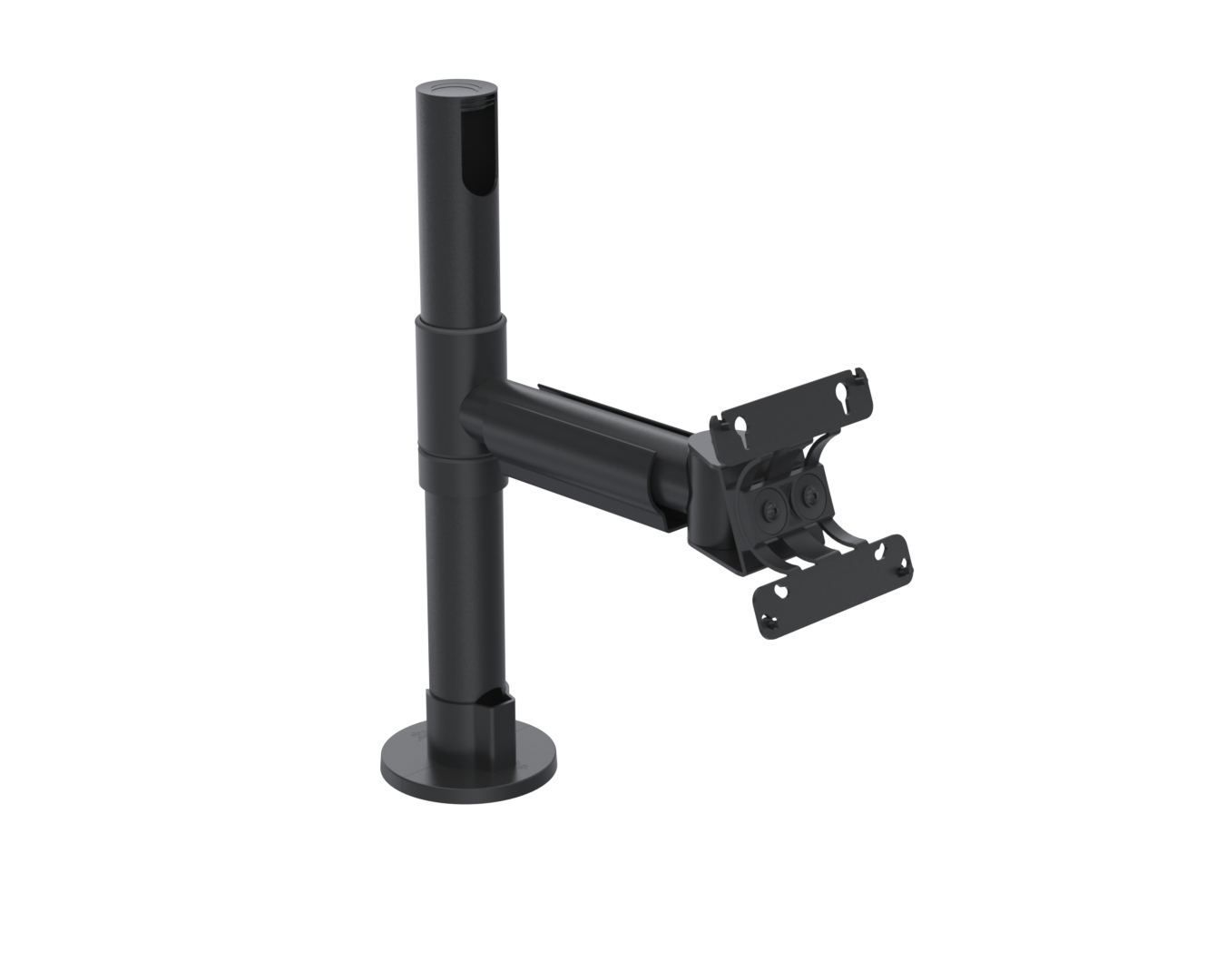

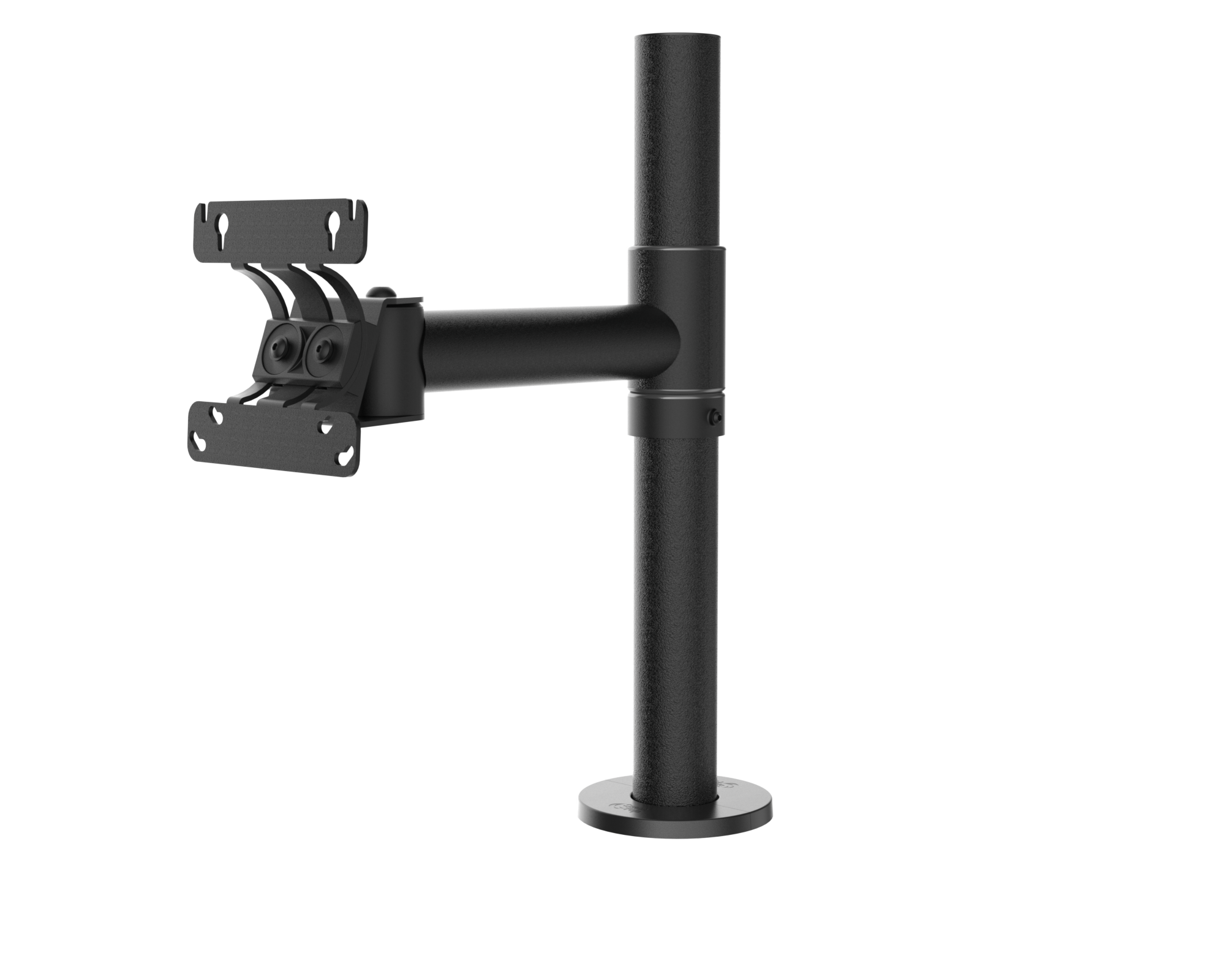

SpacePole Arc VESA 75/100 Mount with 200mm Swingarm
Stylishly mount your touch POS display screens
Our popular Swing Arm provides an ergonomic solution where peripherals or the screen itself is needed to swing between the operator and customer. This allows the customer to view the screen for confirmation of an order, or to rotate the payment terminal from the operator to the customer or vice-versa.
Suitable for screens ranging from 1 - 12kg
Product Specifications
Main material | Metal |
---|---|
Product Version | 1.0 |
Angle of rotation | 310 |
Base Type | Standard flange Footprint Ø97mm |
Colour Name | Black |
Height adjustable? | No |
Screen size supported | 11" , 12" , 13" , 15" , 17" , 19" , 21" , 22" , 24" , 27" |
Max weight capacity (kg) | 12 |
Mounting | VESA |
Mounting Type | Counter |
Screws included | Yes |
Colour Type | Structured , Anti-microbial |
Tilt angle range | +10 to -70° |
Unit Depth | 333.8 mm |
Unit Height | 402.9 mm |
Unit Width | 115 mm |
Unit Weight | 1.78 kg |
Units per Box | 1 |
Pole diameter type | SP2 inner = 44.5mm |
Box Depth | 600 mm |
Box Height | 130 mm |
Box Width | 130 mm |
Box Weight | 1.87 kg |
Warranty | 5 Years |
Product Sheet
Name | Download | File type | |
---|---|---|---|
|
es-SpacePole-Arc-product-sheet-en-r2.pdf | 634 KB |
Installation Guide
Name | Download | File type | |
---|---|---|---|
|
MK15-0333-A4-2Sides vers.1.0 (SpacePole Arc Swing Arm Screen Mount).pdf | 901 KB |
Features
-
Over the last 25 years, we have shipped over 12.5 million SpacePole point of sale installations, making us the preferred choice for over 60% of the world’s top 50 retailers
Benefits
-
The SpacePole Essentials concept is very straightforward. It requires the selection of an appropriate VESA mounting solution and required functionality, pick the cable managed peripheral swingarm and finally match your peripheral hardware to configure your ideal solution.
-
SpacePole Arc follows the design trend and helps enhance the minimalistic appearance of the new screens at the POS
-
Compliments the minimalistic look and feel of modern slim POS screens.
-
Selection of counter & floor mounts
-
Allows for easy integration with peripherals such as payment terminals, scanners and printers.
