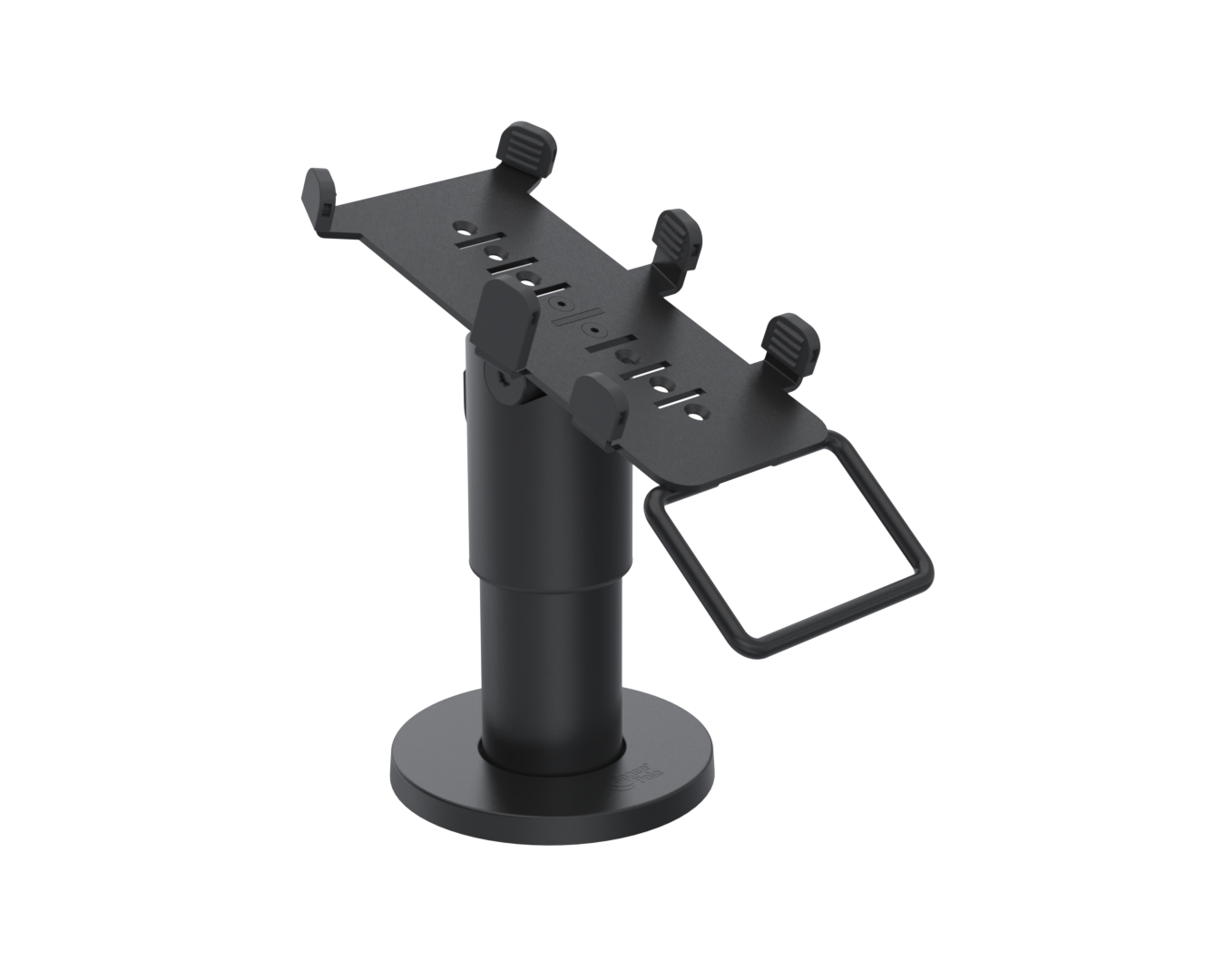

XAC 8006 DuraTilt™ SP2, 100mm (with handle)
XAC8006-D-MH-02
SpacePole DuraTilt is a stylish and durable payment mount designed to securely hold the XAC 8006.
The tilting mechanism ensures smooth terminal operation, enhancing the overall customer experience.
-
- Designed for the XAC 8006
- 10°-70° tilt for improved ergonomics and security
- 210° rotation for easy interaction between cashier and customer
- Secure the payment device and protect end-user personal information
- Easy installation of the ClickSafe lock
- With handle
- 5-year warranty
Available colour(s)
Product Enquiry
If you have any queries about the product, pricing, or purchasing options, please click the button below.
Product Specifications
| Colour Name | Black |
|---|---|
| Colour Type | Structured |
| Device Brand | XAC |
| Compatible device name | 8006 |
| Main material | Metal |
| Product Version | 1.0 |
| Recycled content of packaging [%] | 80 |
| Recycled content of product [%] | 19.635 |
| Angle of rotation | 210 |
| Base Type | Standard flange Footprint Ø97mm |
| Lock Type | ClickSafe |
| Tilt angle range | 10°-70° |
| Pole diameter type | SP2 inner = 44.5mm |
| Unit Weight | 0.92 kg |
| Unit Depth | 178.2 mm |
| Unit Height | 194.5 mm |
| Unit Width | 103.6 mm |
| Units per Box | 1 |
| Box Weight | 1.08 kg |
| Box Depth | 180 mm |
| Box Height | 250 mm |
| Box Width | 138 mm |
| Warranty | 5 Years |
| Recycled Content Disclaimer | The Recycled Content (RC) percentage shown is an average, calculated using a mass balance methodology across our production. This figure is subject to supply chain variability and is provided strictly for informational purposes, carrying no guarantee for individual products. |
Installation Guide
| Name | Download | File type | |
|---|---|---|---|
|
|
MK15-0016-A4-2Sides vers.1.7 (Duratilt and MultiGrip Installation Guide).pdf | 768 KB |
Features
-
Entry level SpacePole Stack or Unique, tried & tested DuraTilt design
Benefits
-
Mount payment devices from ANY manufacturer
-
DuraTilt Tried & Tested design with 5 year warranty (SP2 inner diameter 44.5mm)
-
Modular: Easy to upgrade when the payment device changes
-
SpacePole DuraTilt full solution i.e. pole (SP2) and MultiGrip plate with handle
-
Ready-to-use solution once your payment terminal is installed
