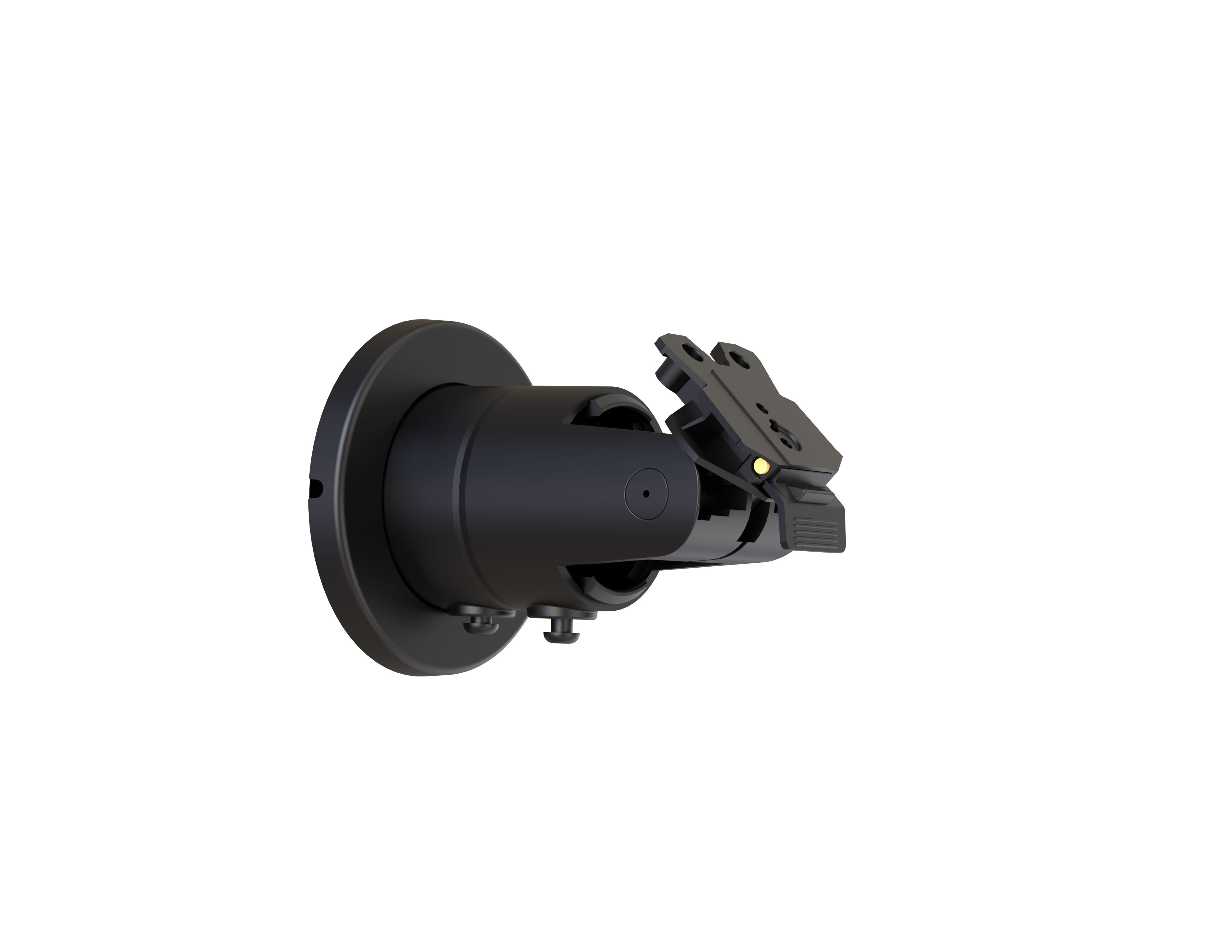

SpacePole Stack® wall with integrated MultiClip™ for Ingenico Lane series, Desk/1500, Desk/1600 and AXIUM RX5000
SPMCL-S-WM-02
SpacePole Stack is a high-quality composite payment mount designed to securely hold any UPM Ingenico payment device.
Its wide base ensures stability, while efficient cable management minimizes clutter, keeping your countertop organized.
-
- Designed for any UPM Ingenico payment device
- 0°-70° tilt for improved ergonomics and security
- 310° rotation for easy interaction between cashier and customer
- Secure the payment device and protect end-user personal information
- Easy installation of the push-lock
- 2-year warranty
Product Specifications
| Device Brand | Ingenico |
|---|---|
| Compatible device name | AXIUM RX5000 , Desk/1500 , Desk/1600 , Lane/3000 , Lane/3000 (With Camera Module) , Lane/5000 , Lane/7000 , Lane/8000 , Lane/3600 , Desk/1700 |
| Main material | Metal/composite |
| Product Version | 1.2 |
| Angle of rotation | 310 |
| Base Type | Flange Footprint 101mm |
| Lock Type | Pushlock |
| Colour Name | Black |
| Colour Type | Structured , Anti-microbial |
| Tilt angle range | 0°-70° |
| Unit Depth | 133.1 mm |
| Unit Height | 101.4 mm |
| Unit Width | 101.4 mm |
| Unit Weight | 0.21 kg |
| Units per Box | 1 |
| Pole diameter type | Stack outer = 62mm |
| Box Depth | 253 mm |
| Box Height | 189 mm |
| Box Width | 94 mm |
| Box Weight | 0.22 kg |
| Warranty | 5 Years metal parts and 2 years plastic parts |
Product Sheet
| Name | Download | File type | |
|---|---|---|---|
|
|
es-SpacePole-Stack-product-sheet-en-r1.pdf | 754 KB |
Installation Guide
Features
-
Fixed and Mobile Payments mounting solutions
Benefits
-
Mount payment devices from ANY manufacturer
-
Two height options out of the box with SpacePole Stack
-
Wider body improves stability of payment terminals & cable management
-
Solutions combining the MultiClip adapter (for Ingenico Lane series only) with Stack Pole
-
Allowing users to integrate their Ingenico Lane series payment terminals,thereby enhancing the functionality and adaptability of their setup
