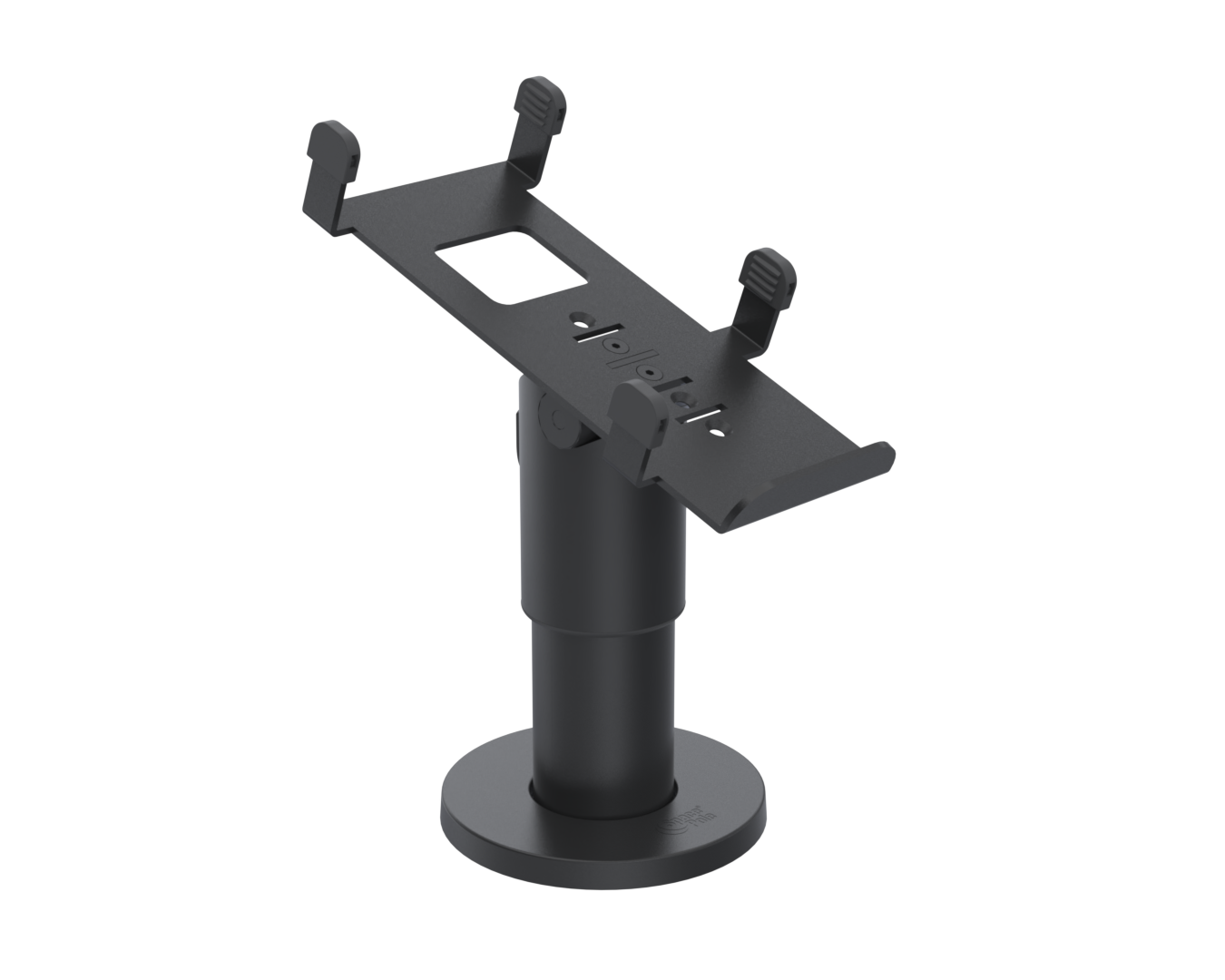

Castles Saturn1000 S1F2 DuraTilt® SP2, 100mm (no handle)
CAS100-D-MN-02
The tried and tested tilt technology in DuraTilt contains 13 individual parts and is tested through 250,000 cycles and proven in retail installations, such as high traffic point of sale stands and point of payment card machine stands, without the need for tightening or lubrication.
Product Specifications
| Device Brand | Castles |
|---|---|
| Compatible device name | Saturn 1000S1F2 |
| Main material | Metal |
| Angle of rotation | 0 |
| Base Type | Standard flange Footprint Ø97mm |
| Height adjustable? | No |
| Lock Type | ClickSafe |
| Mounting | DuraTilt with MultiGrip |
| Pole diameter type | SP2 inner = 44.5mm |
| Colour Name | Black |
| Colour Type | Structured , Anti-microbial |
| Tilt angle range | 10°-70° |
| Unit Depth | 173.7 mm |
| Unit Height | 218.4 mm |
| Unit Width | 103.6 mm |
| Unit Weight | 0.89 kg |
| Units per Box | 1 |
| Box Depth | 180 mm |
| Box Height | 138 mm |
| Box Width | 250 mm |
| Box Weight | 0.93 kg |
| Warranty | 5 Years |
Product Sheet
| Name | Download | File type | |
|---|---|---|---|
|
|
es-DuraTilt-product-sheet-en-r3.pdf | 640 KB |
Installation Guide
| Name | Download | File type | |
|---|---|---|---|
|
|
MK15-0016-A4-2Sides vers.1.7 (Duratilt and MultiGrip Installation Guide).pdf | 768 KB |
Features
-
Entry level SpacePole Stack or Unique, tried & tested DuraTilt design
Benefits
-
Mount payment devices from ANY manufacturer
-
DuraTilt Tried & Tested design with 5 year warranty (SP2 inner diameter 44.5mm)
-
Modular: Easy to upgrade when the payment device changes
-
SpacePole DuraTilt full solution i.e. pole (SP2) and MultiGrip plate without handle
-
Ready-to-use solution once your payment terminal is installed
