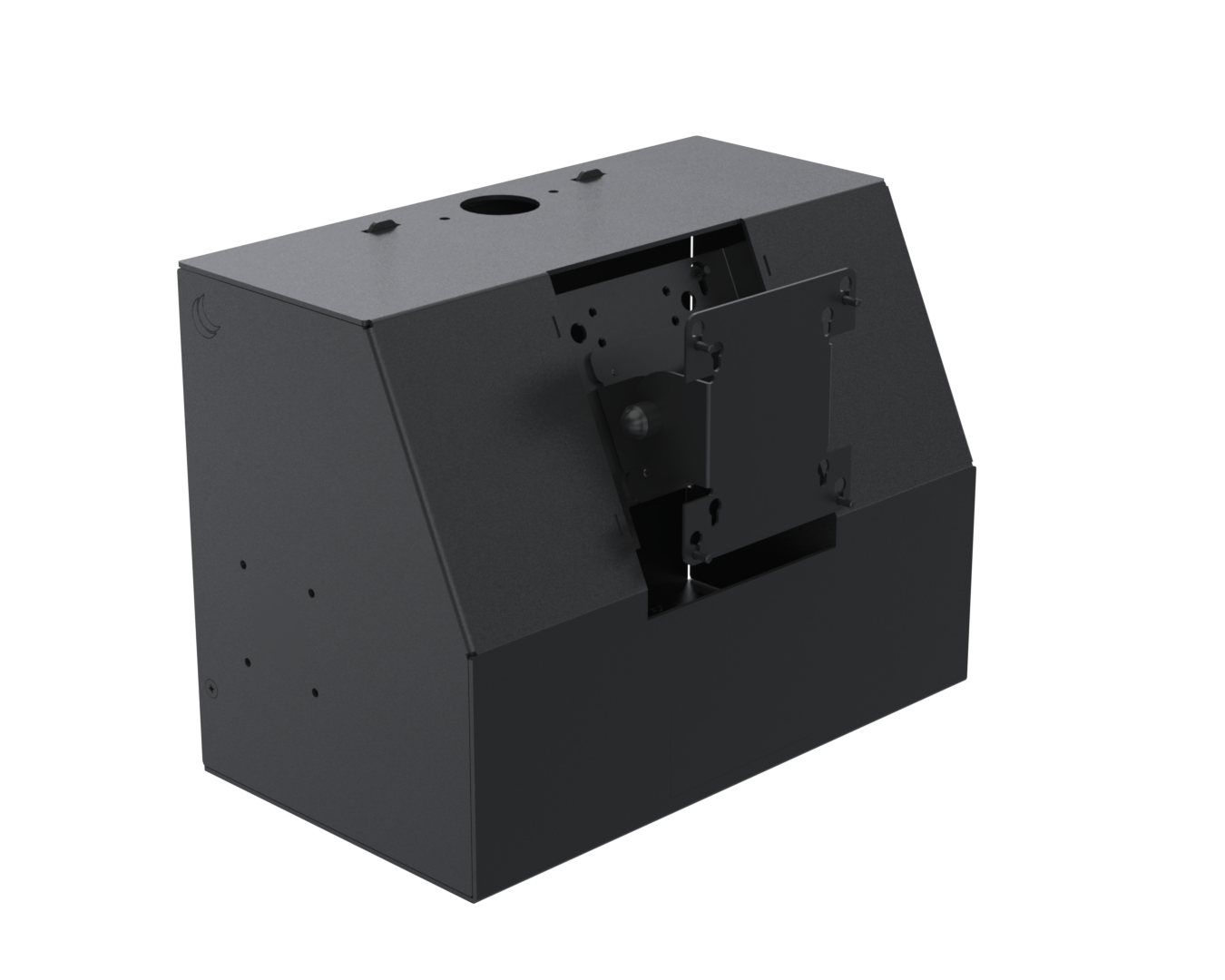

SCO Kiosk Top Module
SPSK100-02
The SCO kiosk top module is the heart of your kiosk solution, whether floor or counter mounted. The configurable nature of the top module also allows for the attachment of a peripheral arm for example, the addition of a payment device.
- Mount any VESA 75 or 100 compatible screen OR tablet from 15” to 24”.
- Screen tilt option (60 degrees) to cater for different heights of users for optimum viewing
- Key holes for easy screen mounting
- Internal cable management for a neat installation
- A range of mounting options for peripherals on the sides and at the top
Product Specifications
| Compatible device name | H400 , IM30 , Magellan 1500i , Mc Print2-3 , TM T88 , TM-M30 & TM-M30II , TSP143 |
|---|---|
| Main material | Metal |
| Product Version | 1.0 |
| Colour Name | Black |
| Colour Type | Structured , Anti-microbial |
| Screen size supported | 15" , 17" , 19" , 21" , 22" , 24" |
| Mounting | VESA |
| Mounting Type | Floor , Counter |
| Unit Depth | 202 mm |
| Unit Height | 264 mm |
| Unit Width | 350 mm |
| Unit Weight | 8.05 kg |
| Units per Box | 1 |
| Box Depth | 477 mm |
| Box Height | 477 mm |
| Box Width | 282 mm |
| Box Weight | 8.45 kg |
| Warranty | 5 Years |
Product Sheet
| Name | Download | File type | |
|---|---|---|---|
|
|
es-SpacePole-Self-Checkout-Kiosk-product-sheet-en-r7.pdf | 1240 KB |
Installation Guide
| Name | Download | File type | |
|---|---|---|---|
|
|
MK15-0392_v.1.0 (SCO Kiosk Top module)-A4.pdf | 961 KB |
