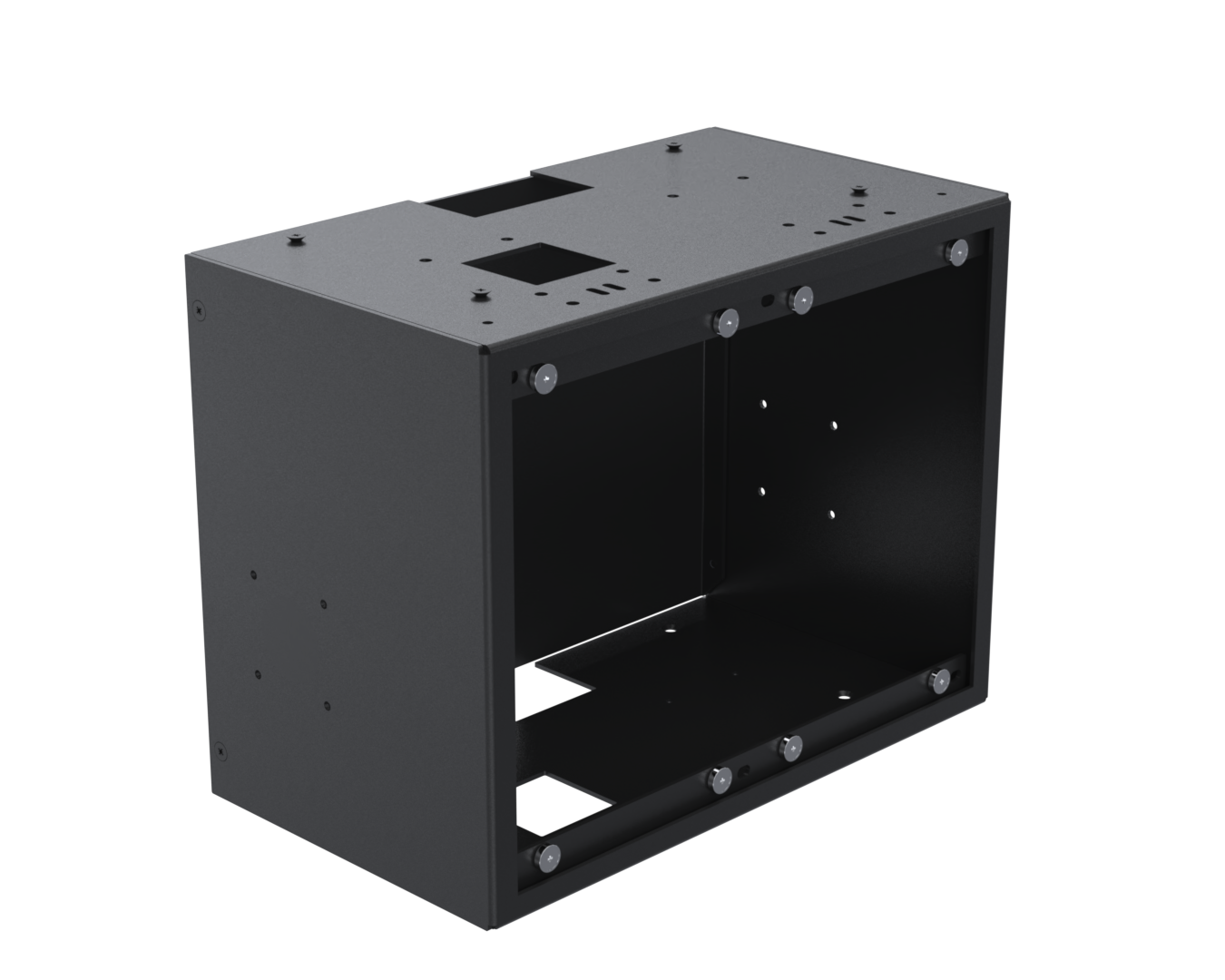

SCO Kiosk Center Module
SPSK200-02
The SCO Kiosk centre module sits underneath the SCO Kiosk Top module and is designed to accommodate two internal peripheral options, such as a printer and scanner combination. It can either be combined with the counter baseplate for a counter mounted solution or the SCO floorstand for a freestanding floor solution. Magnetic fixings for peripheral covers enables easy maintenance for the swapping of printer paper, for example.
-
- Two internal peripheral options
- Magnetic fixings for peripheral covers
- Optional secure fixing of peripherals
- Internal cable management for a neat installation
- Two mounting options for peripherals located on the sides of the centre module
Available colour(s)
Product Enquiry
If you have any queries about the product, pricing, or purchasing options, please click the button below.
Product Specifications
| Colour Name | Black |
|---|---|
| Colour Type | Structured |
| Compatible device name | 1400 Series , GFS4470 , GFS4500 Serie , H400 , IM30 , Magellan 1500i , Mc Print2-3 , TM T88 , TM-M30 & TM-M30II , TSP143 |
| Main material | Metal |
| Product Version | 1.0 |
| Recycled content of packaging [%] | 98 |
| Recycled content of product [%] | 17.922 |
| Mounting | Hardware Specific Mounting Pattern |
| Mounting Type | Floor , Counter |
| Unit Weight | 6.89 kg |
| Unit Depth | 202 mm |
| Unit Height | 270 mm |
| Unit Width | 350 mm |
| Units per Box | 1 |
| Box Weight | 7.95 kg |
| Box Depth | 477 mm |
| Box Height | 282 mm |
| Box Width | 477 mm |
| Warranty | 5 Years |
| Recycled Content Disclaimer | The Recycled Content (RC) percentage shown is an average, calculated using a mass balance methodology across our production. This figure is subject to supply chain variability and is provided strictly for informational purposes, carrying no guarantee for individual products. |
Installation Guide
| Name | Download | File type | |
|---|---|---|---|
|
|
MK15-0393_v.1.0 (SCO Kiosk Center module)-A4.pdf | 463 KB |
