SpacePole Indoor enclosures

SPDS1000 Series

The SpacePole Digital Signage indoor enclosure provides an eye-catching solution for mounting your digital signage screens. Consumers expect a joined-up sales strategy, meaning that what they find in-store reflects what that they find online. Digital signage is the platform to bring those multichannel messages together, allowing retailers to draw the attention of customers both in-store and passing by.

With its secure and stable design, it is ideal for the retail, hospitality, and entertainment industries to drive digital engagement with customers and end-users.


Small Footprint & Consistent Design: Across our indoor product range (Wall, Floor or Window mounted versions)

Safety and Security: Protective safety glass included with each enclosure as well as top and bottom security screws

Designed and manufactured in Denmark: Short lead times with a focus on simplicity, quality and sustainability

Easy installation & Maintenance: The modular design ensures that the solutions can be assembled without the use of mechanical lifting equipment whilst also providing easy removal of the screen for maintenance

Customisation: Available in a wide range of colours, with the ability to add your own corporate touch

Indoor enclosure Single sided (SPDS1001) with Indoor base pole (SPDS1100), and Indoor adjustable window mount in small (SPDS1101), medium (SPDS1102) and large (SPDS1103) variants

Click on image to view full-size


Space optimisation with “one look”: Designed with a minimal footprint for space optimisation on the retail floor, maintaining your “look & feel” throughout the store

Safe and secure: Protecting your customers and preventing tampering or theft of the screen

Sustainability: The slim enclosure is designed and manufactured in line with our core value to respect the planet

Cost-effective installation & Maintenance: Saves time and cost in installation as well as maintenance of the display when easy access is required

Make it your Own: Including the use of your corporate colours, logo and brand identity

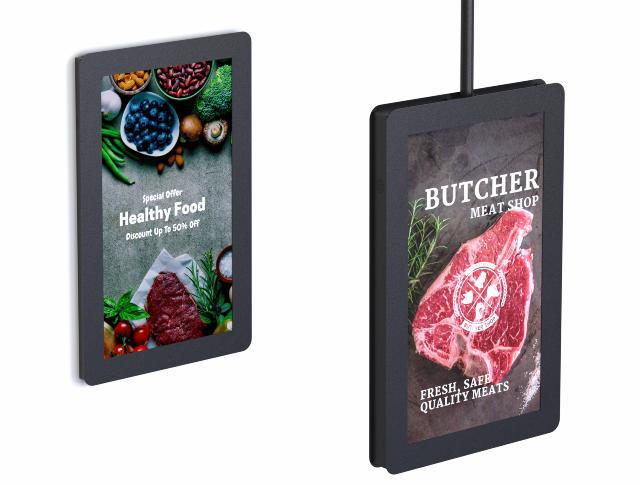

Wall and Ceiling mounting options


  SPDS1000 SPDS1001 SPDS1100 SPDS1101 / SPDS1102 / SPDS1103
Product description Indoor wall mounted enclosure Single sided (SPDS1000) Indoor enclosure Single sided (SPDS1001) Indoor base pole 730mm (SPDS1100)

Indoor adjustable window mount
956-1305mm - small (SPDS1101)
1310-1950mm - medium (SPDS1102)
1510- 2300 - large (SPDS1103)

Compatible SpacePole accessories   Indoor base pole:
730mm (SPDS1100)
Indoor adjustable window mount:
956-1305mm (small) (SPDS1101)
1310-1950mm (medium) (SPDS1102)
1510- 2300mm (large) (SPDS1103)
Indoor enclosure - Single sided (SPDS1001)
Compatible hardware Samsung displays QH55R / QH55B
Other displays can be supported on request
Mounting VESA 200 / 200

Hinged door - easy access to screen for maintenance

Security screws to prevent unauthorised access

With 4mm safety glass (EN12600 protects screen)

Hook-on VESA bracket for easy installation

Same enclosure design as SPDS1000 and SPDS1001 for consistent look & feel throughout the store

Minimal footprint for space optimisation at the floor Adjustable to accommodate different window sizes with the same mount
Weight limit (hardware) 25kg 25kg 55kg 55kg
Material / Warranty Painted metal / 5 years warranty
Product Dimensions/ Weight H1420x W890 x L100mm
44 kg / 97.00 lbs
H1420 x W890 x L150mm
55 kg | 121.30 lbs
H730 x W250 x L150mm
5 kg | 11.02 lbs
Indoor adjustable window mount:
H160 x W78 x L956 - 1305mm (small)
H160 x W78 x L1310 - 1950m (medium)
H160 x W78 x L1510 - 2300mm (large)
Installation guide MK15-0377 MK15-0378 MK15-0380 MK15-03820
Mounting options Wall
(Fixings not included)
Flat concrete surface
(Chemical anchors required. Not included)
Concrete or wooden material
(Fixings not included)
Cable management Yes (internal) N/A

Both the SPDS1000 and the SPDS1001 have passed the Samsung Design Review process

Antimicrobial Powder Paint

Antimicrobial powder coating is applied, as standard, to all SpacePole® metal products ordered in black for effective, long term protection from germs and bacteria.
