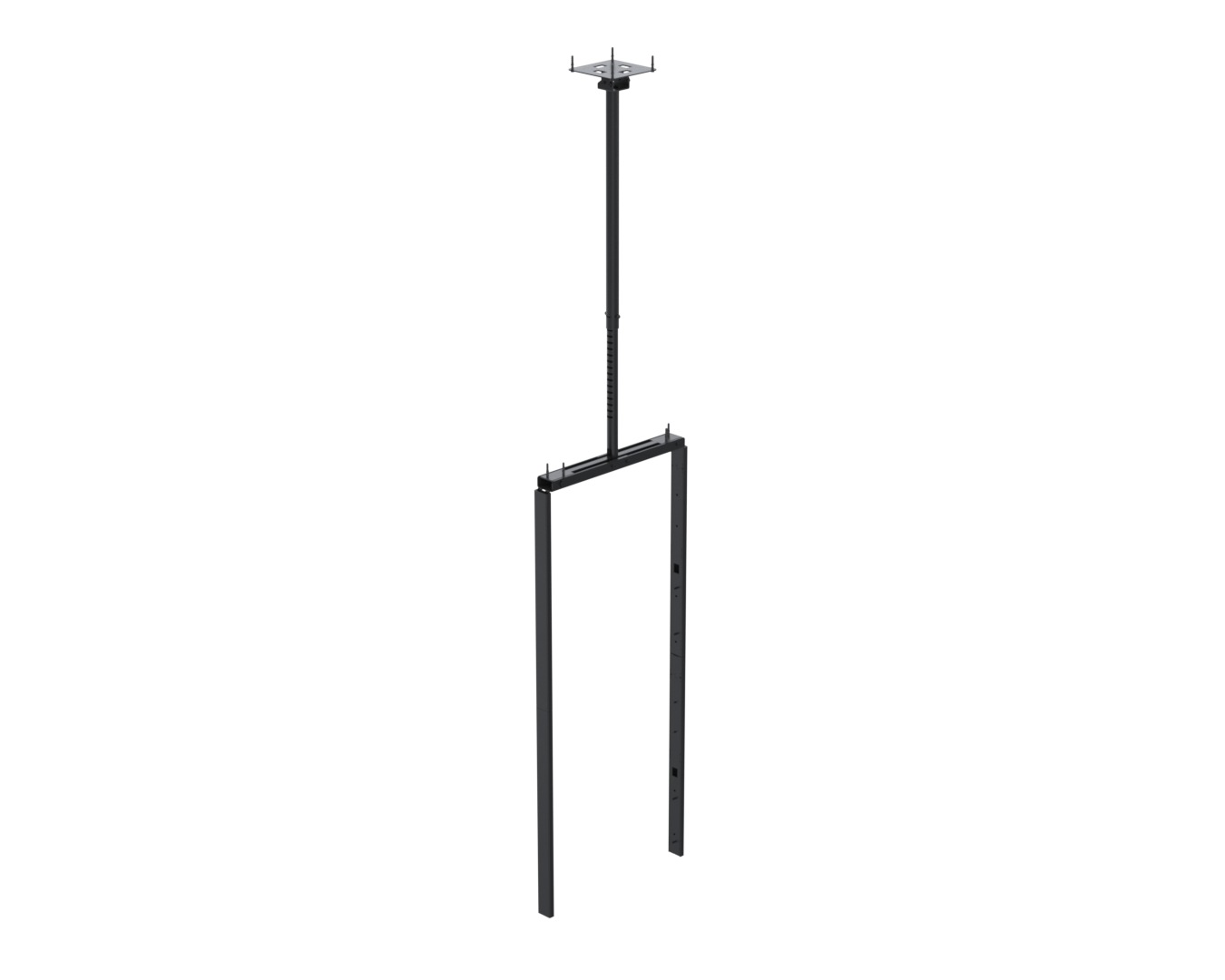

Telescopic SPDS43001 double sided display
SPDS43001-02
Transform your space with our telescopic ceiling mount, for the Samsung OM55N-D and OM55N-DS displays. The extension pole is ideal for anchoring above a suspended ceiling, ensuring secure installation and stability, maximising customer engagement.
• Dual-sided display solution for the Samsung OM55N-D series
• Ideal for mounting with suspended ceilings
• Screen height below suspended ceiling: 492 mm (measured from ceiling to top of screen)
• Extension above suspended ceiling: 1160 to 1760mm with 20 fixed positions
• Rotation of extension pole: 60 degrees
• Can be installed on slope ceilings with up to 20 degrees slope (Extension pole)
Product Specifications
| Device Brand | Samsung |
|---|---|
| Compatible device name | OM55N-DS |
| Main material | Metal |
| Cable Management | Internal |
| Colour Name | Black |
| Colour Type | Structured , Anti-microbial |
| Design Approved by Hardware Manufacturer | Samsung |
| Enclosure Format | Back-To-Back |
| Enclosure type | Indoor |
| Max weight capacity (kg) | 50 |
| Mounting | Hardware Specific Mounting Pattern |
| Mounting Type | Ceiling |
| Screen size supported | 55" |
| Unit Depth | 778.5 mm |
| Unit Height | 3378 mm |
| Unit Width | 240 mm |
| Unit Weight | 28.39 kg |
| Height adjustable? | Yes |
| Units per Box | 1 |
| Box Depth | 320 mm |
| Box Height | 140 mm |
| Box Width | 1195 mm |
| Box Weight | 29.81 kg |
| Warranty | 5 Years |
Product Sheet
| Name | Download | File type | |
|---|---|---|---|
|
|
es-SpacePole-In-Window-Ceiling-Mount-product-sheet-en-r5.pdf | 1546 KB |
Installation Guide
| Name | Download | File type | |
|---|---|---|---|
|
|
MK15-0417_v.1.0 (Extension pole for in-window ceiling mount).pdf | 547 KB | |
|
|
MK15-0416_v1.0 (In-window ceiling mount 0M55N-DS_0M55N-D).pdf | 871 KB |
