In-window ceiling mount for OM55N-DS / OM55N-D (Short)
SPDS4301-02

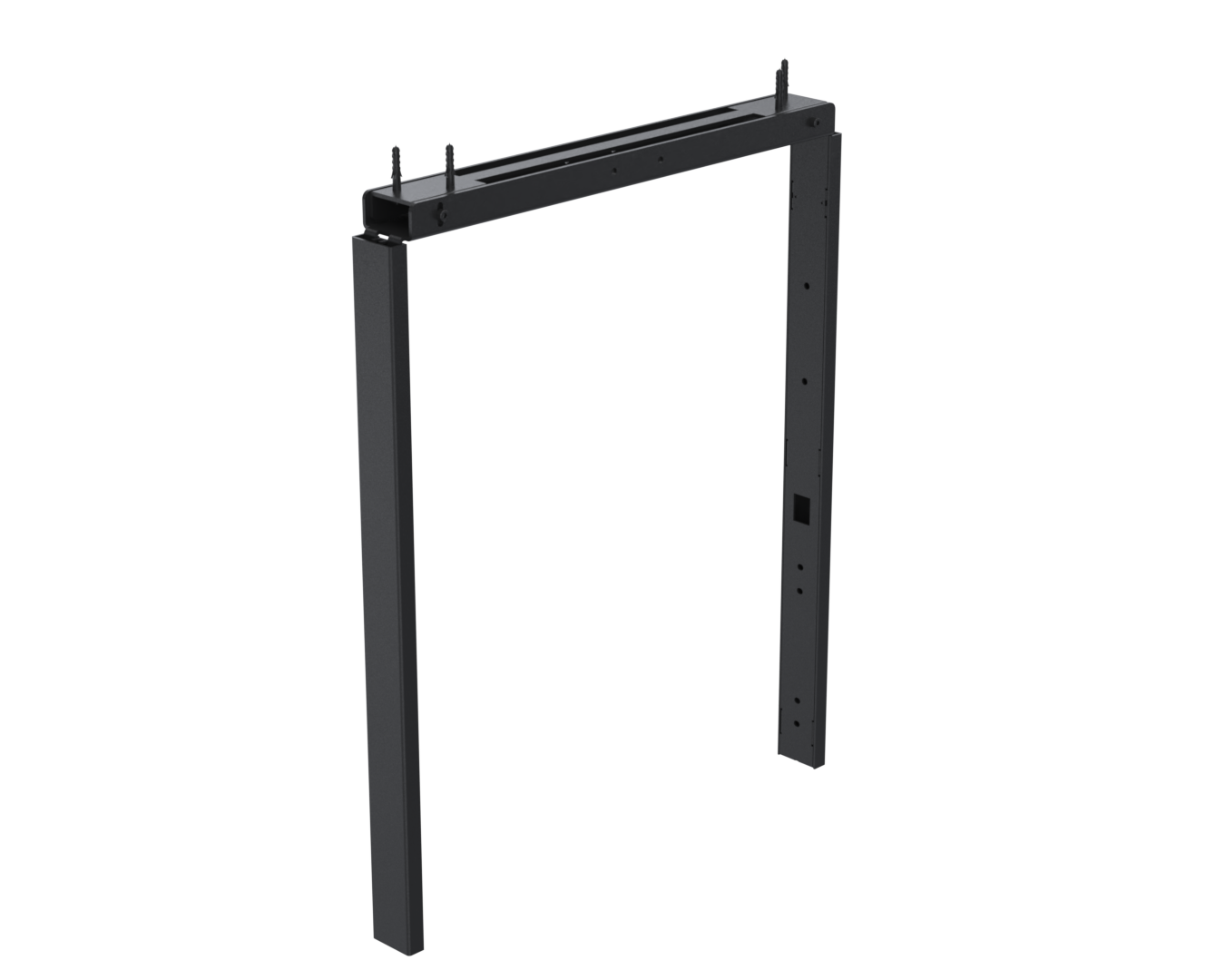

In-window ceiling mount for OM55N-DS & OM55N-D (Top covers included)
In-Window Ceiling Mount for Samsung OM55N-DS & OM55N-D displays lets you target specific audiences with external messaging while engaging customers inside. Customisable colours seamlessly blend with your brand for a polished, impactful look.
• Ceiling mounted solution for Dual-sided Samsung display
• Compatible with Samsung OM55N-D and OM55N-DS
• Screen height: 492 mm (From ceiling to top of screen)
• Internal cable management
• Custom colours on request
• Compatible with Samsung OM55N-D and OM55N-DS
• Screen height: 492 mm (From ceiling to top of screen)
• Internal cable management
• Custom colours on request
-
- Designed for in-window, dual-sided (back-to-back) portrait display installations
- Approved by Samsung for use with OM55N series displays
- Maximum weight capacity: 50 kg
- Integrated internal cable management for clean, professional look
- Includes aesthetic top covers for a finished appearance
- 5-year warranty
Available colour(s)
Product Enquiry
If you have any queries about the product, pricing, or purchasing options, please click the button below.
Product Specifications
| Colour Name | Black |
|---|---|
| Colour Type | Structured |
| Device Brand | Samsung |
| Compatible device name | OM55N-DS |
| Main material | Metal |
| Product Version | 1.0 |
| Recycled content of packaging [%] | 70 |
| Recycled content of product [%] | 17.560 |
| Design Approved by Hardware Manufacturer | Samsung |
| Enclosure Format | Back-To-Back |
| Max weight capacity (kg) | 50 |
| Mounting | Hardware Specific Mounting Pattern |
| Mounting Type | Ceiling |
| Screen size supported | 55" |
| Unit Weight | 14.31 kg |
| Unit Depth | 101.8 mm |
| Unit Height | 951.1 mm |
| Unit Width | 778.4 mm |
| Units per Box | 1 |
| Box Weight | 15.04 kg |
| Box Depth | 1015 mm |
| Box Height | 175 mm |
| Box Width | 160 mm |
| Warranty | 5 Years |
| Recycled Content Disclaimer | The Recycled Content (RC) percentage shown is an average, calculated using a mass balance methodology across our production. This figure is subject to supply chain variability and is provided strictly for informational purposes, carrying no guarantee for individual products. |
