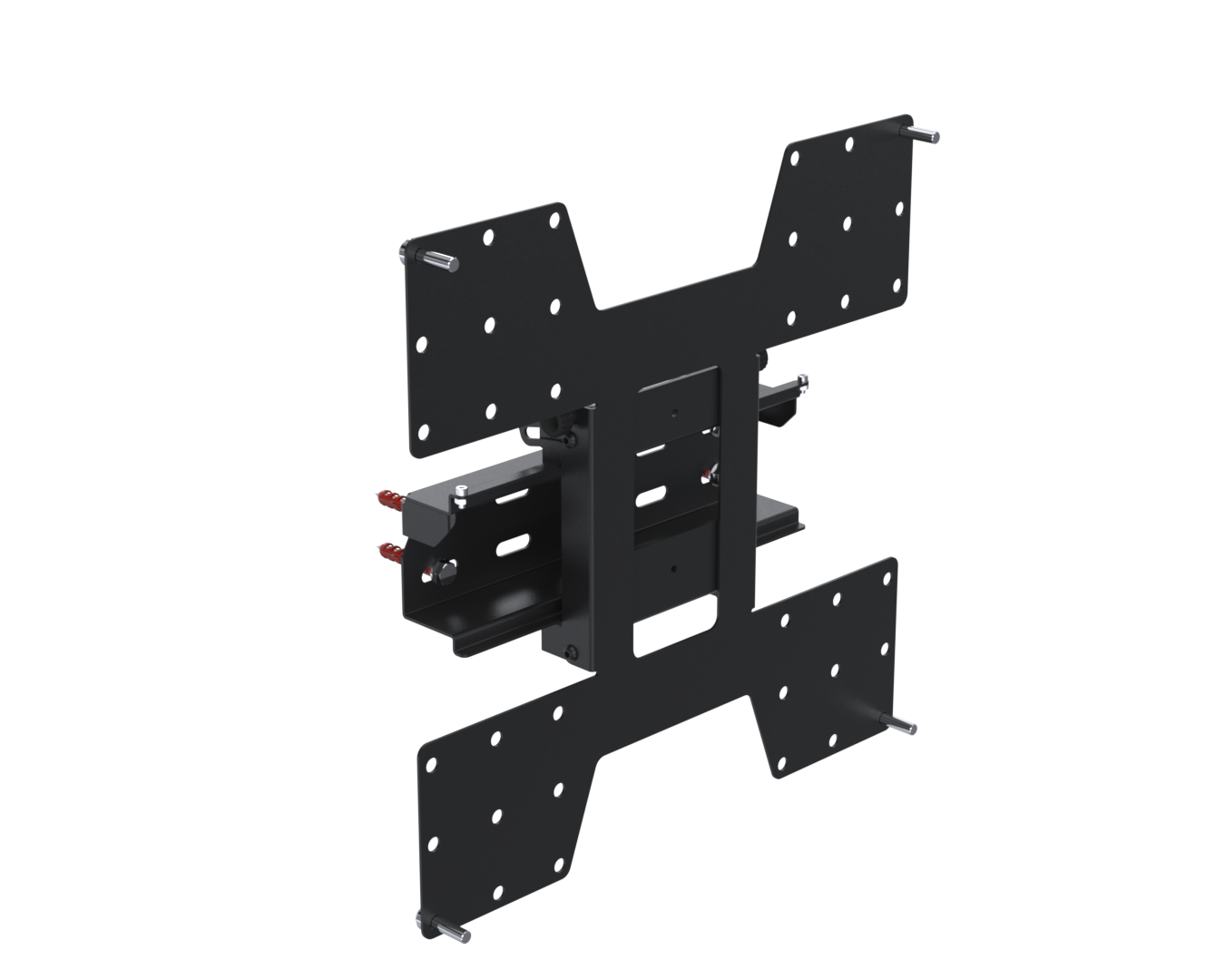

Tilting wall mount for screens up to 65" (VESA 200 to VESA 400)
WT4410AA-02
Transform your space with our Universal Tilting Wall Mount for single screens up to 65". With adjustable tilt for the perfect viewing angles, it's easy to install and compatible with leading digital signage brands.
• Universal tilting Single screen wall mount for screens up to 65"
• Easy hook-on mounting of screen
• Supports VESA 200x200, 200x300, 200x400, 300x200, 300x300, 300x400, 400x200, 400x300 and 400x400
• Include fixing to secure screen (bottom)
• Quick release plunger can be added for easy installation and maintenance
• Tilt (degrees) Landscape: 0-15° for < 55”, 0-10° for 55" and 0-5° for 65” screens
• Tilt (degrees) Portrait: 0-15° for < 43”, 0-10° for 43" and 0-5° for 50"- 65” screens
Product Specifications
| Screen Size | Up to 65" |
|---|---|
| Main material | Metal |
| Distance to the wall | 87 mm |
| Cable Management | External cable management clip |
| Colour Name | Black |
| Colour Type | Structured , Anti-microbial |
| Enclosure Format | Single Sided |
| Enclosure type | Indoor |
| Max weight capacity (kg) | 80 |
| Mounting | VESA |
| Mounting Type | Wall |
| Screen size supported | 32" , 37" , 42" , 48" , 50" , 55" , 60" , 65" |
| VESA mounting standard | 200 x 200 , 200 x 300 , 200 x 400 , 300 x 200 , 300 x 300 , 300 x 400 , 400 x 200 , 400 x 300 , 400 x 400 |
| Unit Depth | 87 mm |
| Unit Height | 420 mm |
| Unit Width | 420 mm |
| Unit Weight | 3.23 kg |
| Units per Box | 1 |
| Box Depth | 435 mm |
| Box Height | 90 mm |
| Box Width | 435 mm |
| Box Weight | 3.39 kg |
| Warranty | 5 Years |
Product Sheet
| Name | Download | File type | |
|---|---|---|---|
|
|
es-Hook-and-Rail-Product-Sheet-en-r2.pdf | 1387 KB |
Installation Guide
| Name | Download | File type | |
|---|---|---|---|
| MK15-0496_V1.0 (tilting wall mount for screens up to 65 inch).PDF | 709 KB |
