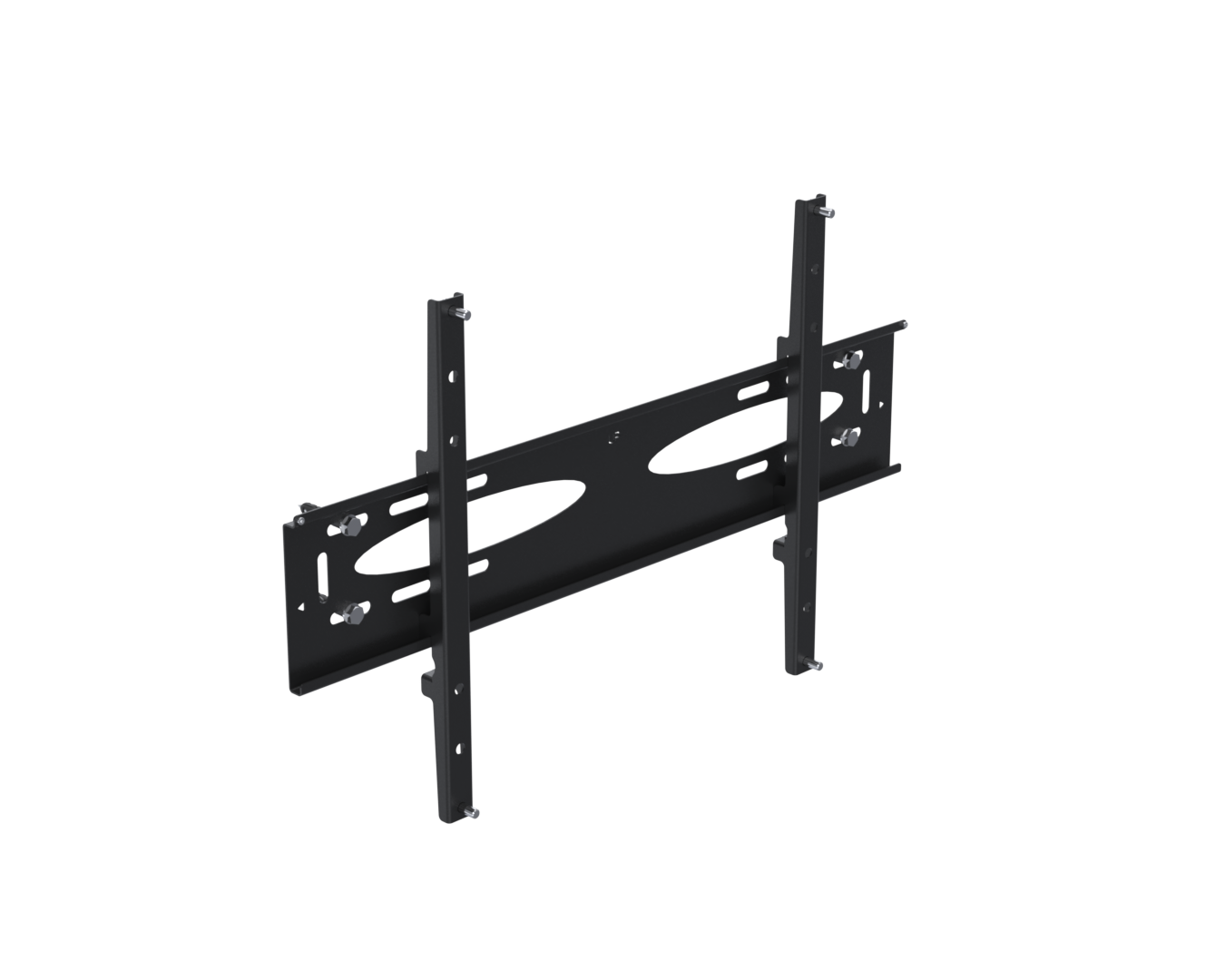

Fixed wall bracket for screens from 48" to 85" (up to VESA 600x400)
SPDS564FP-02
Secure and stylish fixed wall mount for 48” to 85” screens, supporting up to VESA 600x400. This sleek solution maximises space, offering a modern look, and keeps your large display safely mounted for an enhanced viewing experience.
- Single screen fixed wall mount
- Easy hook-on mounting of the screen
- Distance from wall is only 3 cm
- Supports VESA 200x200, 200x300, 200x400, 300x200, 300x300, 300x400, 400x200, 400x300, 400x400 and 600x400
- Weight capacity: 80 kg
- Include fixing to secure screen (bottom)
-
- bullet 1 test
- bullet 2 test
Product Specifications
| Main material | Metal |
|---|---|
| Product Version | 1.0 |
| Colour Name | Black |
| Colour Type | Structured , Anti-microbial |
| Enclosure Format | Single Sided |
| Max weight capacity (kg) | 80 |
| Mounting | VESA |
| Mounting Type | Wall |
| Screen size supported | 48" , 50" , 55" , 60" , 65" , 75" , 85" |
| VESA mounting standard | 200 x 200 , 200 x 300 , 200 x 400 , 300 x 200 , 300 x 300 , 300 x 400 , 400 x 200 , 400 x 300 , 400 x 400 , 600 x 300 , 600 x 400 |
| Unit Depth | 30.8 mm |
| Unit Height | 420 mm |
| Unit Width | 680 mm |
| Unit Weight | 1.99 kg |
| Units per Box | 1 |
| Box Depth | 152 mm |
| Box Height | 38 mm |
| Box Width | 716 mm |
| Box Weight | 2.3 kg |
| Warranty | 5 Years |
Product Sheet
| Name | Download | File type | |
|---|---|---|---|
|
|
SPDS564FP-02.pdf | 271 KB |
Installation Guide
| Name | Download | File type | |
|---|---|---|---|
|
|
MK15-0484_V1.0 (SPDS54- and SPDS56-_ Universal Flat Wall Mounts).pdf | 968 KB |
