Fixed wall bracket for screens from 32" to 65" (VESA 200 to VESA 400)
SPDS544FP-02

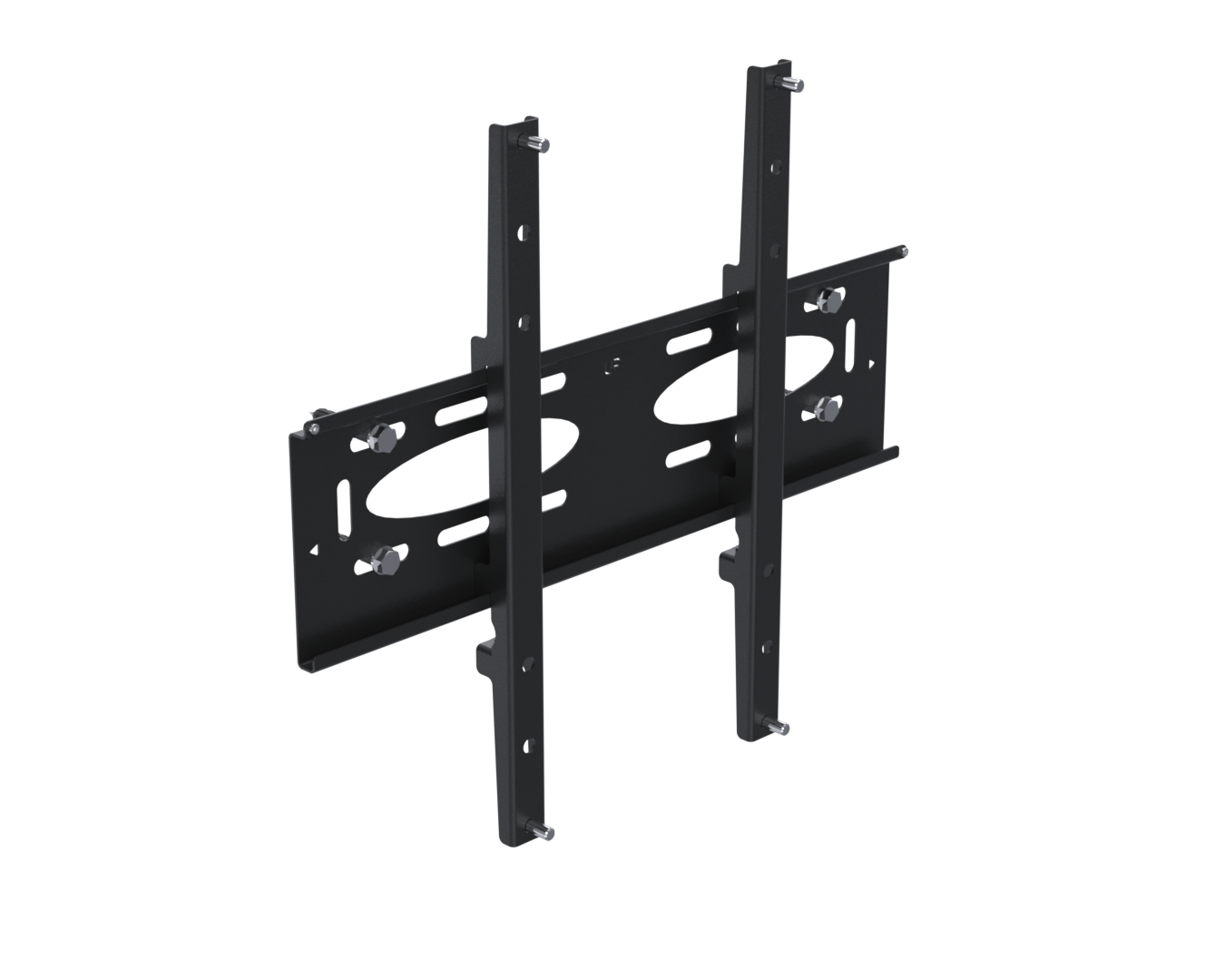

A sleek and sturdy fixed wall mount compatible with screens from 32” to 65”, and VESA 200 to 400 compatible. This stylish mount provides a secure, space-saving solution, adding a modern touch to any room while keeping your display safely mounted.
• Single screen fixed wall mount
• Easy hook-on mounting of the screen
• Supports VESA 200x200, 200x300, 200x400, 300x200, 300x300, 300x400, 400x200, 400x300 and 400x400
• Weight capacity: 80kg
• Distance from wall is only 3cm
• Includes fixing to secure screen at the bottom
Product Specifications
| Screen Size | 32" to 65" |
|---|---|
| Main material | Metal |
| Colour Name | Black |
| Colour Type | Structured , Anti-microbial |
| Enclosure Format | Single Sided |
| Enclosure type | Indoor |
| Max weight capacity (kg) | 80 |
| Mounting | VESA |
| Mounting Type | Wall |
| Screen size supported | 32" , 37" , 42" , 43" , 48" , 50" , 55" , 60" , 65" |
| VESA mounting standard | 200 x 200 , 200 x 300 , 200 x 400 , 300 x 200 , 300 x 300 , 300 x 400 , 400 x 200 , 400 x 300 , 400 x 400 |
| Unit Depth | 30.8 mm |
| Unit Height | 420 mm |
| Unit Width | 480 mm |
| Unit Weight | 1.65 kg |
| Units per Box | 1 |
| Box Depth | 152 mm |
| Box Height | 38 mm |
| Box Width | 716 mm |
| Box Weight | 1.9 kg |
| Warranty | 5 Years |
Product Sheet
| Name | Download | File type | |
|---|---|---|---|
|
|
SPDS544FP-02.pdf | 284 KB |
Installation Guide
| Name | Download | File type | |
|---|---|---|---|
|
|
MK15-0484_V1.0 (SPDS54- and SPDS56-_ Universal Flat Wall Mounts).pdf | 968 KB |
