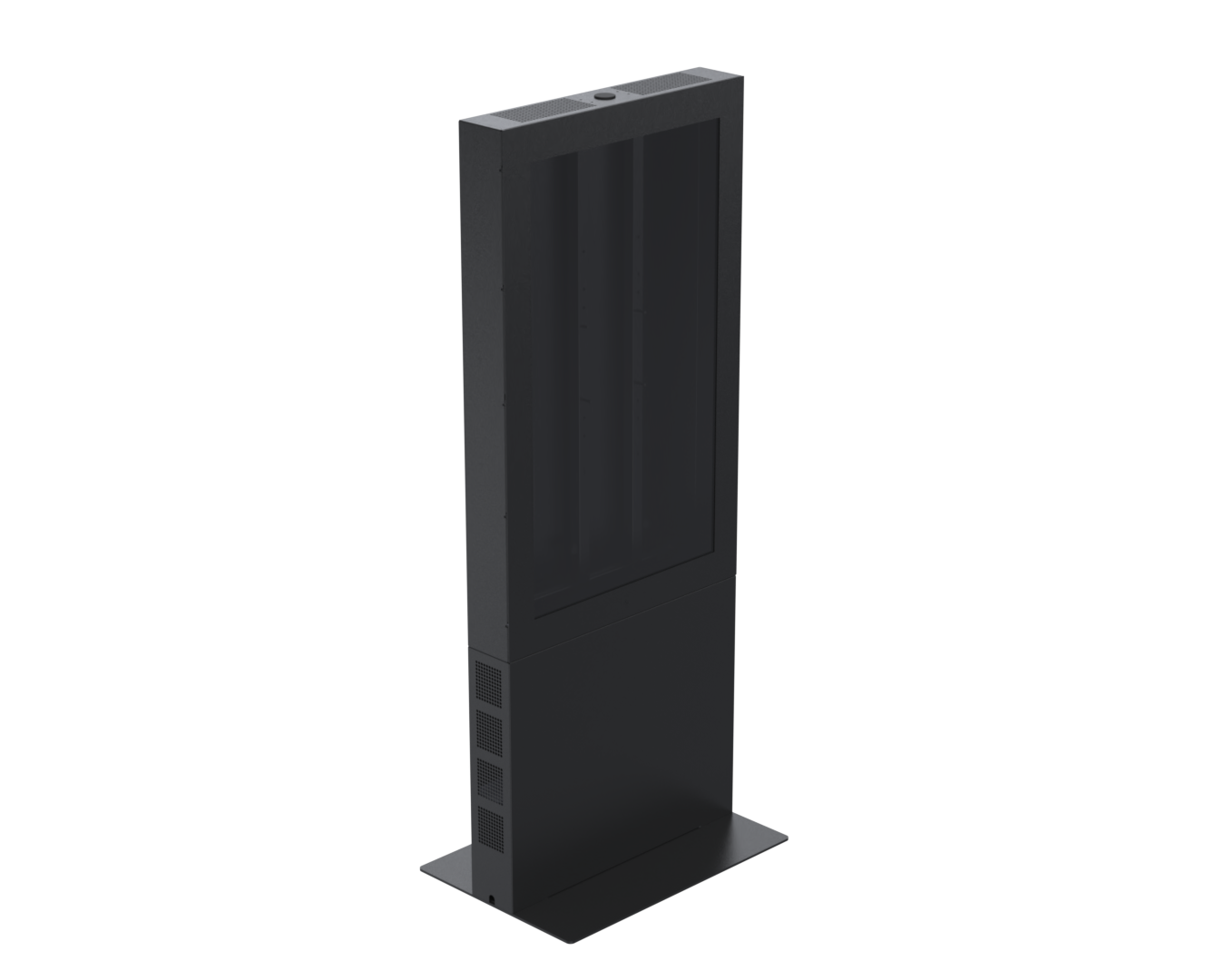

55” freestanding enclosure
SPDS10041-02
Our 55" freestanding solution combines a durable screen enclosure with a sleek totem base, offering a space-saving, easy to install and maintain option for digital signage in retail spaces, and more.
Approved for the range of Samsung screens: QE55T, BE55C-H, QH55C, QH55B, QB55R-B, QM55B, QM55R, QM55R-A, QB55R, QH55R, QB55B, QM55C, QB55C, QM55B-T
-
• Freestanding floor mounted Totem
• Universal to fit a wide range of 55” screens
• Small Footprint
• 4 mm protective safety glass (EN12600 norm) included
• Top and bottom security screws to prevent unauthorized access to screen
• Hinged door for easy access to screen for maintenance
• Hook-on VESA bracket for easy installation of screen
Product Specifications
| Device Brand | BenQ , Hisense , LG , NEC , Panasonic , Philips , Planar , Samsung , Sharp |
|---|---|
| Main material | Metal |
| Product Version | 1.0 |
| Distance to the wall | 0 mm |
| Colour Name | Black |
| Colour Type | Structured , Anti-microbial |
| Enclosure Format | Single Sided |
| Max weight capacity (kg) | 40 |
| Mounting | VESA |
| Mounting Type | Floor |
| Screen size supported | 55" |
| VESA mounting standard | 200 x 200 , 200 x 300 , 200 x 400 , 300 x 200 , 300 x 300 , 300 x 400 , 400 x 200 , 400 x 300 , 400 x 400 , 600 x 300 , 600 x 400 |
| Unit Depth | 600 mm |
| Unit Height | 2136.5 mm |
| Unit Width | 863.3 mm |
| Unit Weight | 116.97 kg |
| Units per Box | 1 |
| Box Depth | 950 mm |
| Box Height | 400 mm |
| Box Width | 1600 mm |
| Box Weight | 122.82 kg |
| Warranty | 5 Years |
Product Sheet
| Name | Download | File type | |
|---|---|---|---|
|
|
SPDS10041-02.pdf | 239 KB |
Installation Guide
| Name | Download | File type | |
|---|---|---|---|
|
|
MK15-0499_V1.0 (55” freestanding enclosure SPDS10041).pdf | 7116 KB |
