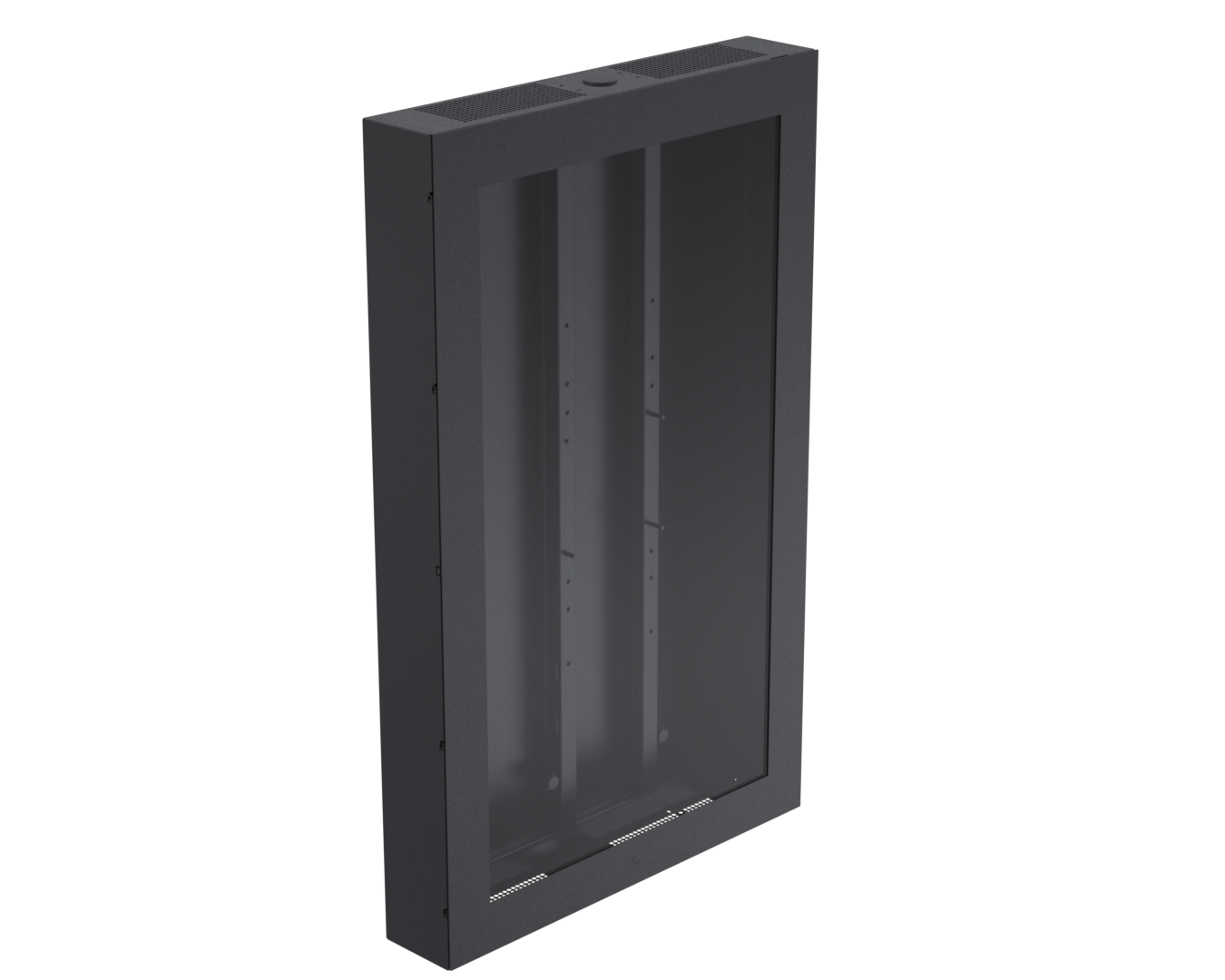

55" enclosure
SPDS1004-02
The SpacePole Digital Signage indoor enclosure provides an eye-catching solution for mounting your digital signage screens. Consumers expect a joined-up sales strategy, meaning that what they find in-store reflects what that they find online.
- Universal to fit a wide range of 55” screens
- Hinged door for easy access to screen for maintenance
- Security screws to prevent unauthorized access to screen
- Includes a 4mm safety glass following the EN12600 norm to protect the screen
- Hook-on VESA bracket for easy installation of screen
- Compatible with SPDS1100, SPDS1101, SPDS1102, SPDS1103, SPDS1104
Approved for the range of Samsung screens: QE55T, BE55C-H, QH55C, QH55B, QB55R-B, QM55B, QM55R, QM55R-A, QB55R, QH55R, QB55B, QM55C, QB55C, QM55B-T
Product Specifications
| Device Brand | BenQ , Hisense , LG , NEC , Panasonic , Philips , Planar , Samsung , Sharp |
|---|---|
| Main material | Metal |
| Product Version | 1.1 |
| Distance to the wall | 0 mm |
| Colour Name | Black |
| Colour Type | Structured , Anti-microbial |
| Design Approved by Hardware Manufacturer | Samsung |
| Enclosure Format | Single Sided |
| Max weight capacity (kg) | 40 |
| Mounting | VESA |
| Mounting Type | Floor , Window |
| Screen size supported | 55" |
| VESA mounting standard | 200 x 200 , 200 x 300 , 200 x 400 , 300 x 200 , 300 x 300 , 300 x 400 , 400 x 200 , 400 x 300 , 400 x 400 , 600 x 300 , 600 x 400 |
| Unit Depth | 160 mm |
| Unit Height | 860 mm |
| Unit Width | 1405 mm |
| Unit Weight | 50.63 kg |
| Units per Box | 1 |
| Box Depth | 1470 mm |
| Box Height | 940 mm |
| Box Width | 195 mm |
| Box Weight | 53.16 kg |
| Warranty | 5 Years |
Product Sheet
| Name | Download | File type | |
|---|---|---|---|
|
|
es-Indoor-Enclosure-product-sheet-en-V7.pdf | 1177 KB |
Installation Guide
| Name | Download | File type | |
|---|---|---|---|
|
|
MK15-0459_V1.0 (SpacePole Universal indoor enclosure (55”) – Single sided).pdf | 2605 KB |
