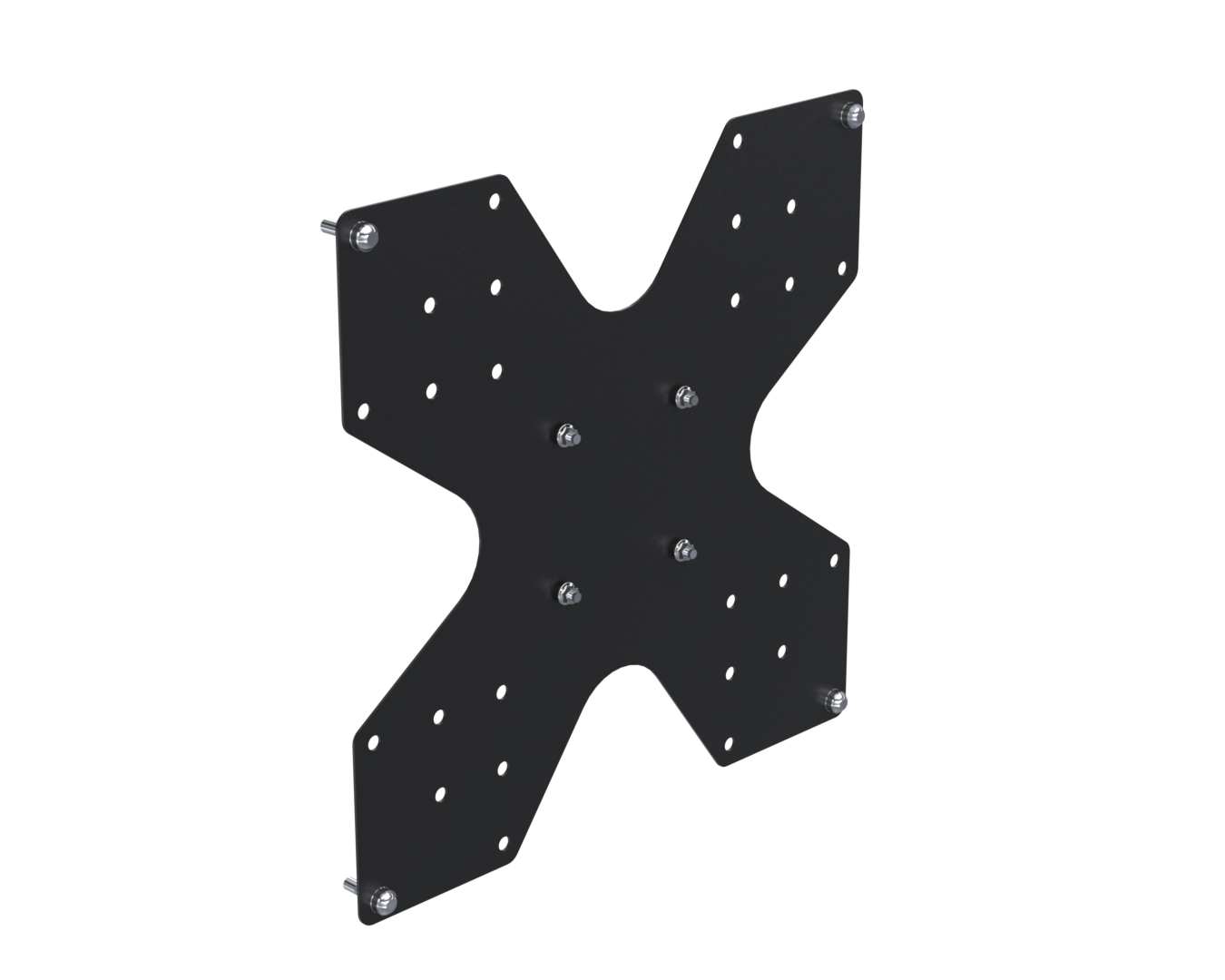

VESA 100 to 200-300-400 adapter
SPDS2117-05
The VESA 100 to 200-300-400 adapter is the perfect solution for upgrading your mounting setup. This versatile adapter allows you to easily convert VESA 100 x 100mm mounts to VESA 200 x 400mm compatibility, ensuring a secure fit for your larger displays. Crafted from durable materials, it offers stability and peace of mind while maintaining a sleek look.
-
- Cost effective mounting option for single screen configurations (one-sided or back-to-back)
- Portrait and landscape supported
- Extends VESA 100 to 200/200, 200/300, 300/200 300/300, 300/400 and 400/200, 400/300 and 400/400
- Compatible with Mobile Signage Cart (SPM147), Hook & Rail (SPDS2000 series)
- 5-year warranty
Available colour(s)
Product Enquiry
If you have any queries about the product, pricing, or purchasing options, please click the button below.
Product Specifications
| Colour Name | Grey |
|---|---|
| Colour Type | Structured |
| Main material | Metal |
| Product Version | 1.0 |
| Max weight capacity (kg) | 45 |
| Mounting | VESA |
| Mounting Type | Ceiling |
| Screen size supported | 15" , 17" , 19" , 21" , 24" , 27" , 32" , 37" , 42" , 43" , 48" , 50" , 55" |
| VESA mounting standard | 100 x 100 , 100 x 200 , 200 x 100 , 200 x 200 , 200 x 300 , 200 x 400 , 300 x 100 , 300 x 200 , 300 x 300 , 300 x 400 , 400 x 200 , 400 x 300 , 400 x 400 |
| Unit Weight | 2.39 kg |
| Unit Depth | 4.4 mm |
| Unit Height | 430 mm |
| Unit Width | 430 mm |
| Units per Box | 1 |
| Box Weight | 2.92 kg |
| Box Depth | 435 mm |
| Box Height | 90 mm |
| Box Width | 435 mm |
| Warranty | 5 Years |
Installation Guide
| Name | Download | File type | |
|---|---|---|---|
|
|
MK15-0359_v.1.1 (VESA Adapters).pdf | 245 KB |
