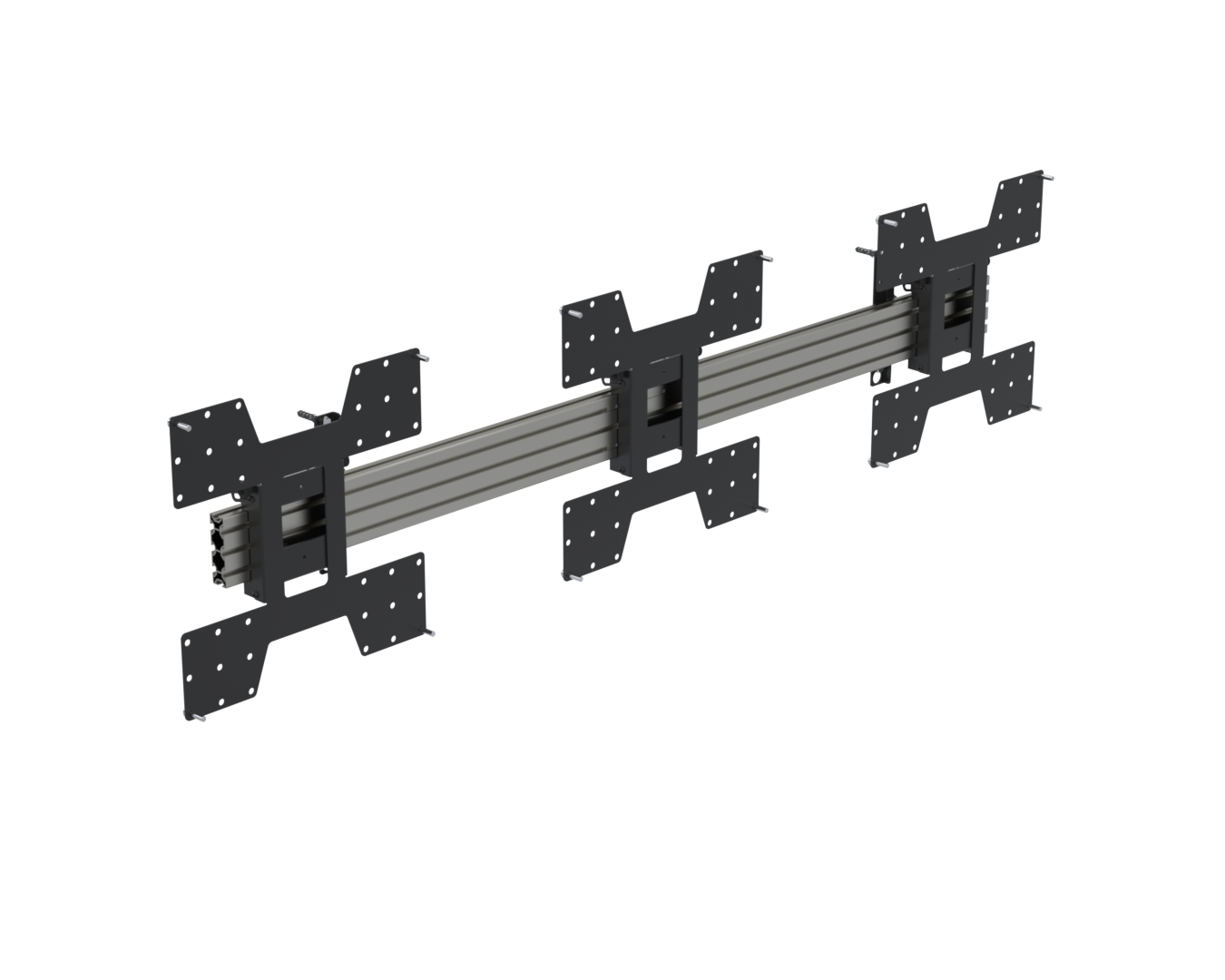

Menu board mount, with tilt, for 3 screens (portrait) up to 55" (max VESA 400)
WT443160LL-A2
Our wall mounted Menu Board with tilt is designed for three screens (up to 55") in portrait orientation. It supports max of VESA 400 and features adjustable tilt for optimal viewing angles, capturing your customers attention.
• Compatible with 3 screens up to 55” in portrait orientation
• Includes micro adjustment
• Easy hook-on mounting of screens
• Includes fixing to secure screens at the bottom
• Quick release - Optional
• Rail can be cut to size for smaller screens
• Tilt (degrees): 0-15° for < 43”, 0-10° for 43” and 0-5° for 50" to 55" screens
Product Specifications
| Screen Size | Up to 55" |
|---|---|
| Main material | Metal |
| Distance to the wall | 0 mm |
| Cable Management | External cable management clip |
| Colour Name | Aluminium /Black |
| Colour Type | Structured |
| Enclosure Format | Single Sided |
| Enclosure type | Indoor |
| Max weight capacity (kg) | 150 |
| Mounting | VESA |
| Mounting Type | Wall |
| Screen size supported | 32" , 37" , 42" , 43" , 48" , 50" , 55" |
| VESA mounting standard | 100 x 100 , 200 x 200 , 200 x 300 , 200 x 400 , 300 x 200 , 300 x 300 , 300 x 400 , 400 x 200 , 400 x 300 , 400 x 400 |
| Unit Depth | 80 mm |
| Unit Height | 420 mm |
| Unit Width | 1795 mm |
| Unit Weight | 11.97 kg |
| Units per Box | 1 |
| Box Depth | 490 mm |
| Box Height | 140 mm |
| Box Width | 1195 mm |
| Box Weight | 12.57 kg |
| Warranty | 5 Years |
Product Sheet
| Name | Download | File type | |
|---|---|---|---|
|
|
WT443160LL-A2.pdf | 296 KB |
Installation Guide
| Name | Download | File type | |
|---|---|---|---|
| MK15-0497_V1.0 (menu board mount for multiple screens up to 55 inch).PDF | 1448 KB |
