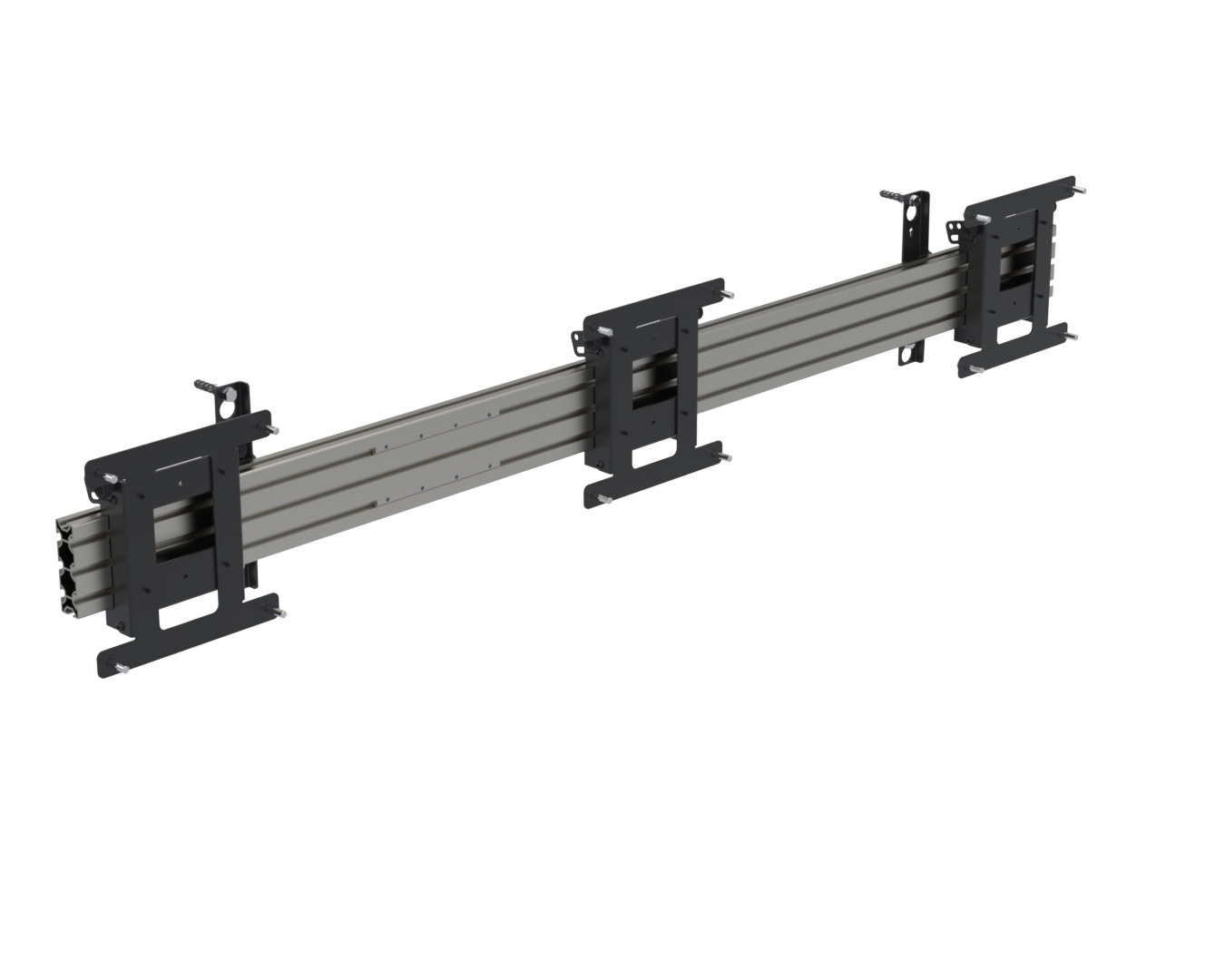

Menu board mount, with tilt, for 3 screens (portrait) up to 43" (VESA 100 and 200)
WT223158LL-A2
Our wall mounted Menu Board with tilt is designed for three screens (up to 43") in portrait orientation. It supports VESA 100 & 200 configurations and features adjustable tilt for optimal viewing angles. Perfect for dynamic menus or digital signage.
• Compatible with 3 screens up to 43” in portrait orientation
• Includes micro adjustment
• Easy hook-on mounting of screens
• Includes fixing to secure screens at the bottom
• Quick release - Optional
• Rail can be cut to size for smaller screens
• Tilt (degrees): 0-15° for < 43” and 0-10° for 43” screens
Product Specifications
| Main material | Metal |
|---|---|
| Product Version | 1.0 |
| Colour Name | Aluminium /Black |
| Colour Type | Structured |
| Enclosure Format | Single Sided |
| Max weight capacity (kg) | 150 |
| Mounting | VESA |
| Mounting Type | Wall |
| Screen size supported | 15" , 17" , 19" , 21" , 22" , 24" , 27" , 32" , 37" , 42" , 43" |
| VESA mounting standard | 100 x 100 , 200 x 200 |
| Unit Depth | 80 mm |
| Unit Height | 235.1 mm |
| Unit Width | 1580 mm |
| Unit Weight | 8.81 kg |
| Units per Box | 1 |
| Box Depth | 250 mm |
| Box Height | 350 mm |
| Box Width | 1200 mm |
| Box Weight | 9.25 kg |
| Warranty | 5 Years |
Product Sheet
| Name | Download | File type | |
|---|---|---|---|
|
|
WT223158LL-A2.pdf | 278 KB |
Installation Guide
| Name | Download | File type | |
|---|---|---|---|
|
|
MK15-0486_V1.0 (Menu board mount for multiple screens up to 43 inch).pdf | 2064 KB |
