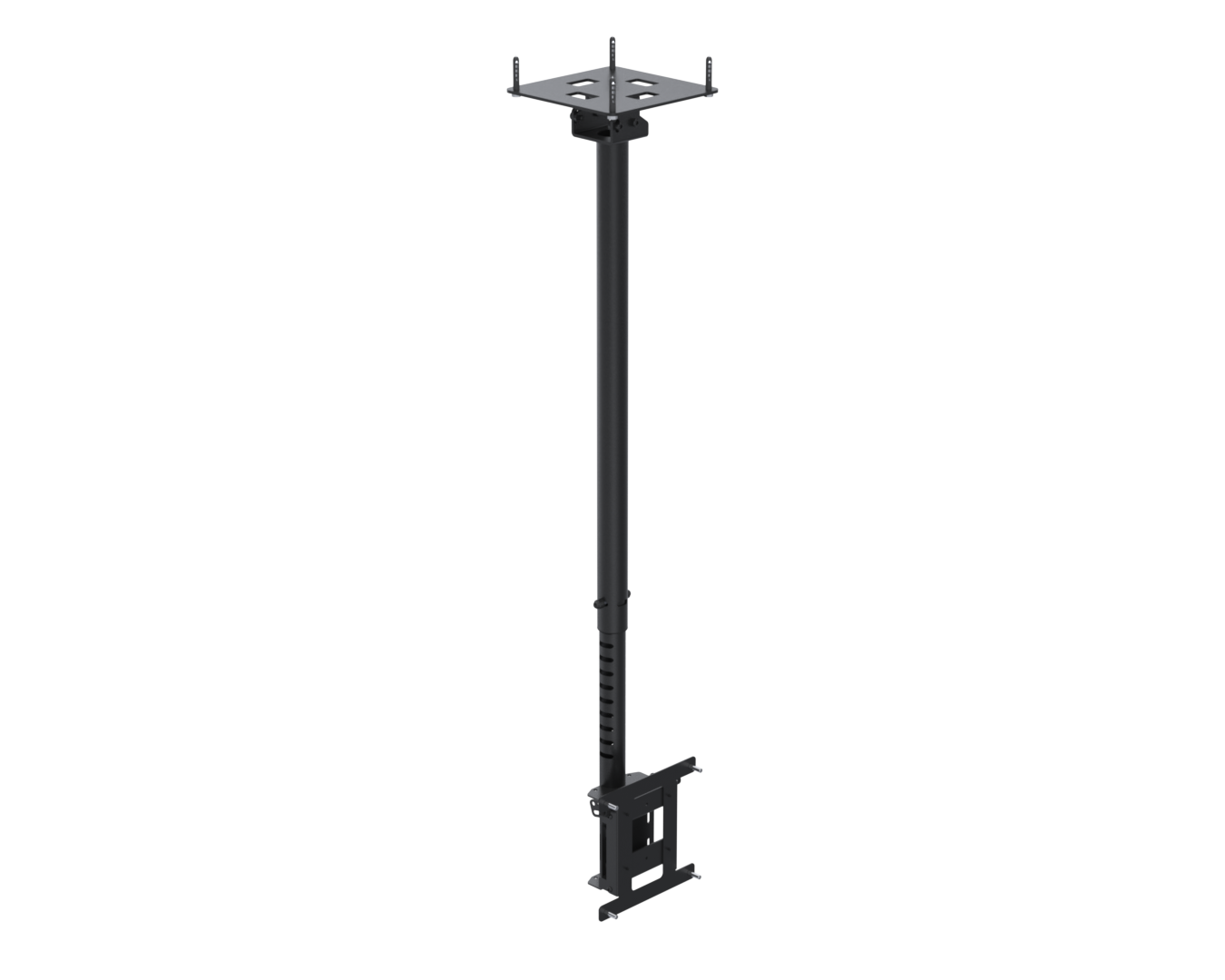

Telescopic ceiling mount for screens up to 43" (VESA 100 and VESA 200)
CT2210AA-02
Optimise your space with our telescopic ceiling mount for screens up to 43" and larger screens with maximum VESA 200/200 (supports VESA 100x100 & 200x200). Perfect for enhancing visibility, it offers adjustable height and a sleek design, making it ideal for both commercial and retail environments.
-
- Single display solution for screens up to 43" and larger screens with maximum VESA 200/200
- Ceiling mounted
- Supports portrait and landscape orientation
- Height adjustment: 1000 to 1500mm (20 fixed positions)
- Rotation of pole: 60°
- Can be installed on sloped ceilings with an angle of up to 20°
- Key holes for easy screen mounting
- 5-year warranty
Available colour(s)
Product Enquiry
If you have any queries about the product, pricing, or purchasing options, please click the button below.
Product Specifications
| Colour Name | Black |
|---|---|
| Colour Type | Structured |
| Main material | Metal |
| Product Version | 1.1 |
| Recycled content of product [%] | 20.753 |
| Enclosure Format | Single Sided |
| Max weight capacity (kg) | 80 |
| Mounting | VESA |
| Mounting Type | Ceiling |
| Screen size supported | 15" , 17" , 19" , 21" , 22" , 24" , 27" , 32" , 37" , 42" , 43" , 48" , 50" , 55" |
| VESA mounting standard | 100 x 100 , 100 x 200 , 200 x 100 , 200 x 200 |
| Unit Weight | 7.76 kg |
| Unit Depth | 240 mm |
| Unit Height | 1000 mm |
| Unit Width | 240 mm |
| Units per Box | 1 |
| Box Weight | 9.07 kg |
| Box Depth | 1195 mm |
| Box Height | 140 mm |
| Box Width | 320 mm |
| Warranty | 5 Years |
| Recycled Content Disclaimer | The Recycled Content (RC) percentage shown is an average, calculated using a mass balance methodology across our production. This figure is subject to supply chain variability and is provided strictly for informational purposes, carrying no guarantee for individual products. |
Installation Guide
| Name | Download | File type | |
|---|---|---|---|
|
|
MK15-0494_V1.0 (Telescopic ceiling mounts).pdf | 1620 KB |
