Ergonomic Solutions and Toshiba
Our SpacePole Essentials product range
SpacePole Essentials range of POS mounts has been developed for a wide variety of settings and offers a diverse and comprehensive range of features that you need for any type of application featuring Toshiba display screens.
- More flexibility and movement
- More options for integrating peripherals
- To free up counter space
- Easy upgrade to existing SpacePole installations
- Investment protection for the future
Toshiba TCx800 with SpacePole Essentials SPV106 Elbow Arm
SpacePole Kiosk & Signage
Our SpacePole Essentials product range

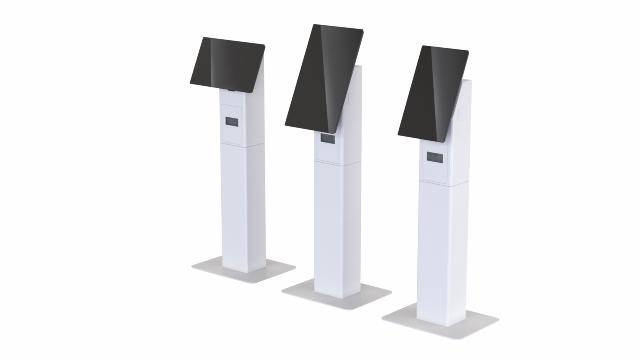

The SpacePole Kiosk ™ provides a configurable platform for self-service applications in the grocery, retail, hospitality, and entertainment sectors.
We have designed a module which provides an aesthetic and compatible self-service solution specifically for the Toshiba TCx810 displays with screen sizes from 15”, 15.6” & 19.5”.
Counter Mount
Wall Mount
Floor Mount
Specifications
| Kiosk specifications | Wall mount | Wall & Counter mounts | Freestanding |
| Mandatory | Kiosk top module (SPK100-TOS) | ||
| Product configurations | Kiosk wall bracket (SPK502) | Kiosk wall bracket (SPK502) for wall mounting | Freestanding module (SPK300) |
| Kiosk centre module (SPK200 or SPK201) | |||
| Compatible SpacePole accessories | Kiosk mover (SPK506) | ||
| Kiosk printer/scanner covers (SPK5xx) | |||
| Kiosk peripheral arm (SPK503), Kiosk Top pole (SPK504), Kiosk straight bracket (SPK511/SPK512) | |||
| Compatible hardware | Wall mount | Wall & Counter mounts | Freestanding |
| Screen / display (VESA 75/75 or 100/100) | Toshiba TCx810 screen: 15", 15.6" and 19.5" | ||
| Payment devices | Any vendor | ||
| Printer (Internal or external) | Supports all printer vendors | External: Supports all printer vendors | |
| Internal: Max printer dimensions: H: 140 x W: 133 x D: 140mm | |||
| Scanner (Internal or external) | Supports all scanner devices | External: Supports all scanner devices | |
| Internal: Max scanner dimensions: H: 44 x W: 89 x D: 140 mm | |||
| Dimensions | SPK100-TOS: H: 184 x W: 166 x D: 255 mm | ||
| SPK502: H: 228 x W: 178 x D: 28 mm | |||
| SPK20x: H: 300 x W: 184 x D: 166 mm | |||
| SPK300: H: 760 x W: 184 x D: 166 mm (Module) H: 30 x W: 450 x D: 400 (Baseplate) | |||
| Weight | SPK100-TOS: 3.50 kg | 7.71 lbs | ||
| SPK502: 0.8 kg | |||
| SPK200: 5.2kg or SPK201: 5.9kg | |||
| SPK300: 21 kg | |||
| Material | Metal | ||
| Cable management | Yes (internal) | ||
| Warranty | 5 years | ||
| ADA compliance | Yes | No | |
